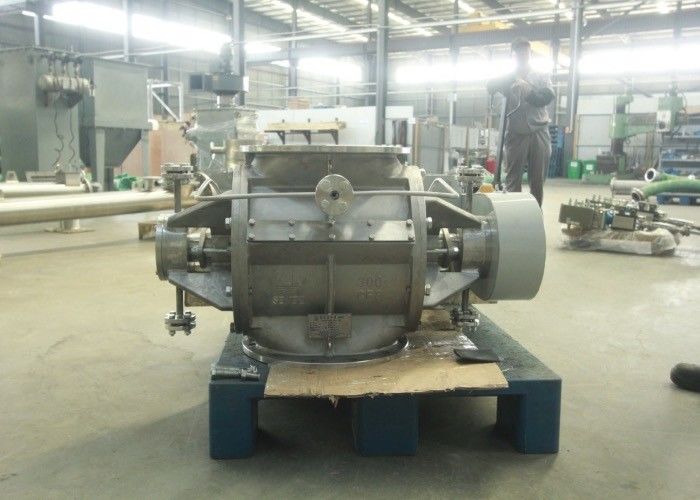

Conveying Solid Powders 25RPM Rotary Feeder Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN100-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Drive Type: Motor /reducer Material: SS304, SS316, SS316L, Q235
Rotary Speed: 25-30RPM Applicable Industry: Coal Gasfication Chemical Industry
Volum: 3.8L-600L Seal Type: Oil/mechanical/labyrinth Etc.
Working Voltage: 220V/380V/690V Etc. Flange Standard: ANSI16.5 150LB,GB, HG Etc.
High Light:

SS316 Rotary Valve


Q235 Rotary Feeder Valve


25RPM Rotary Feeder Valve

Product Description

Rotary feeder valve for high pressure condition to conveying solid powders


Hanrui Puzer is professional as one of the leading slide gate valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy rotary valve at best price with us. We will offer you the greatest after-sales service and fast delivery.


Product description

The coming oil high price area creates unprecedented  developing opportunities for projects of coal gasfication, CTL (Coal transfer to liquid) and coal chemical industry, and coal gasification technology has always been regarded as the core of the chemical industry. Coal gasfication technology is the most importance to implement good coal chemical industry. Rotary valve is the ost reliable and economic key feeding equipment for ejecting quantitative pulverized coal before gasfication burner.


Product advantages

1. Good sealing of pneumatic conveying type rotary valve

2. This cleaning type of  rotating feed valve has special designing of shell rotor.

3. The rotor of the valve can be cleaned automatically.

4. This type of rotary feeder has high working efficiency and has no material accumulation.

5. Special shell inlet/outlet section can effectively prevent particle material from extrusion, blocking and shear breaking.


Main parameters

working temperature  -20℃-200℃/ ≤450℃/ ≤720℃
main size  DN25-DN1000
main type  SELF-CLEANING
main materials SS304, SS304L, SS316, SS316L,SS836L,WCB,QT500 etc.
flange conn. Rating ANSI16.5 150LB,GB, HG, SH or designated by client
Appliable Medium Solid materials(powder, particles, powders/ particles mixtures, flakes etc. )


Conveying Solid Powders 25RPM Rotary Feeder Valve 0


Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements


About us

Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.


The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.

FRQ questions

1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
