China Solid Conveying System manufacturer

Bulk Material Conveying System SS304L Rotary Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN100-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Motors Brand: Simens/ABB/SEW Etc. Material: Can Be Selected
Volum: Can Be Designated Applicable Industry: Food/ Medical Industry
Clean Type: Air Blow / Liquid Washing Package Type: Stretch Film /plywood Etc.
Working Pressure: ATM/LP/HP Etc. Shipping Method: By Sea/by Air/by Land Etc.
High Light:

ANSI rotary feeder valve


SS304L Rotary Valve


DN1000 Rotary Valve

Product Description

Rotary feeder valve for high pressure condition to conveying solid powders


About rotary valve

Rotary feeder is called as rotary valve or star shape feeder. This special equipment is applicable for unloading, packing, mixing, dust collecting, metering, rationing conveying of solid materials (powder, particles and its mixtures) conveying system. The working principle is, by driving motor and reduction gears to turn equi-divided structure impeller inside the shell, then materials from upper silo of the shell or feeder are filled inside cavity of impeller, where materials are discharged along with impeller rotating to the bottom of the shell. Materials can be discharged equably and continuously to the downstream unit according to the conveying system requirements.

Hanrui Rotary Feeder has been awarded 6 national patens and been listed in Shanghai high-tech achievements transformation projects.


Main parameters

working temperature  -20℃-200℃/ ≤450℃/ ≤720℃
main size  DN25-DN1000
main type  SELF-CLEANING
main materials SS304, SS304L, SS316, SS316L,SS836L,WCB,QT500 etc.
flange conn. Rating ANSI16.5 150LB,GB, HG, SH or designated by client
Appliable Medium Solid materials(powder, particles, powders/ particles mixtures, flakes etc. )


Product description

The coming oil high price area creates unprecedented  developing opportunities for projects of coal gasfication, CTL (Coal transfer to liquid) and coal chemical industry, and coal gasification technology has always been regarded as the core of the chemical industry. Coal gasfication technology is the most importance to implement good coal chemical industry. Rotary valve is the ost reliable and economic key feeding equipment for ejecting quantitative pulverized coal before gasfication burner.



Product advantages

1. Good sealing of pneumatic conveying type rotary valve

2. This cleaning type of  rotating feed valve has special designing of shell rotor.

3. The rotor of the valve can be cleaned automatically.

4. This type of rotary feeder has high working efficiency and has no material accumulation.

5. Special shell inlet/outlet section can effectively prevent particle material from extrusion, blocking and shear breaking.

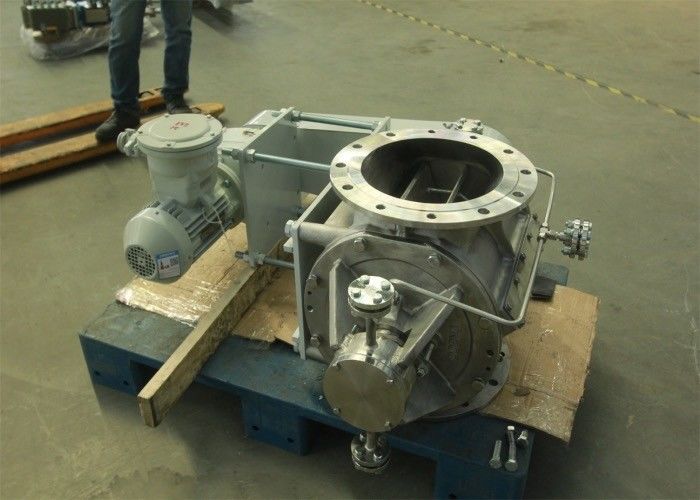

   Bulk Material Conveying System SS304L Rotary Valve 0



  1. We ship out your order by sea or air according to customer‘s request.
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways.
