Q235 98% Filling Efficiency 20m Bulk Truck Loading System

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, ISO4001
Model Number: HRU
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film/plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 300 sets / year

Detail Information

Material: SS304, SS316, SS316L, Q235 Applicable Truck: 20ft/40ft/other
Loading Capacity: Depends On Loading Material Accessories: Tubular Chain Conveyor/dump Station Etc.
Filling Efficiency: 98%-100% Filling Speed: Depends On Loading Material
Voltage: 3P, 380V, 50HZ Working Condition: Gravity/pneumatic
Highlight:

98% Bulk Truck Loading System

,

20m Bulk Truck Loading System

,

Q235 bulk truck loader

Product Description

Mechanical dumping loading/Crane loading system for bulk materials



Mechanical dumping loading
It is mainly to use two high-speed running rollers to drop the materials on the belt, and to speed up the throwing of materials into the container through 90 degrees.



Crane loading system
The loading crane system specially designed for tank car loading is equipped with a manual controller, which is manually connected with the loading crane and the feeding port of tank car; gravity unloading and packing.

Features 1. Accommodate Your needs.
Flexible modular design makes this discharger most suitable for a wide range of applications to best accommodate your needs.
2. Cost efficiency:
Dustless operation helps you to save extra cleaning cost. Incorporated dust collector to help you save cost on a separate dust-collection-device.
3. Space Efficiency:
Understanding the requirement of your project on environment and space, our professional R & D team will design the most appropriate system to suit your needs.
4. Optional Component:
Flow-control valve >Dust collector >Exit conveyor>Dumper>Store hopper>Weighing system



Features of Hanrui's bulk truck loading system :

1. The weight can be controlled stably by the automatic loading system .

2. The loading pressure can be controlled accurately , which guarantees the filling efficiency , meanwhile , it can avoid bag bursting risk .

3. Improve loading efficiency .

4. Can reduce the storage area of warehouse and the cost of storage transfer.



Types of truck loading system

1. Level gravity loading system

 This type of loading system applies to silo over 20M , no additional energy required, the filling efficiency is over 95%.

2.Pneumatic conveying loading system

This type of loading system applies  to granule material loading and the silo foundation is over 1M . No special requirement of container car position. The pneumatic conveying system is integrated. Filling efficiency reaches 100%.

3. Mechnical conveying loading system

This system can contain different combanations: big bag unloading +tubular chain conveying system

                                                                              dump station +tubular chain conveying system

                                                                               big bag unloading +screw conveyor

                                                                               dunmp station +screw conveyor .

Hanrui Puzer is a high-tech enterprisebuilt in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is delicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.

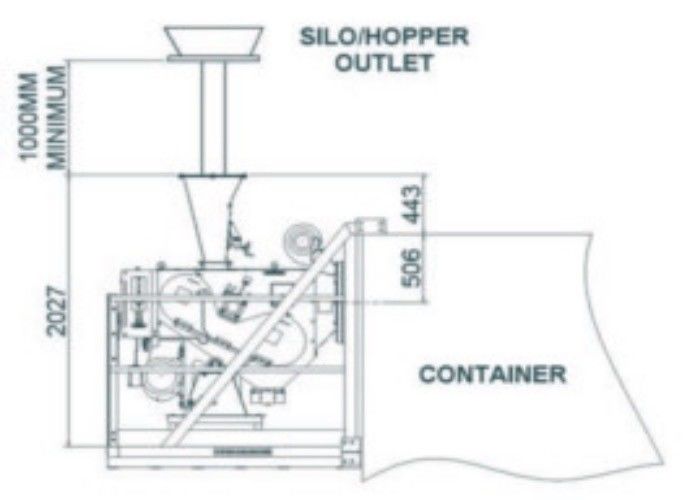

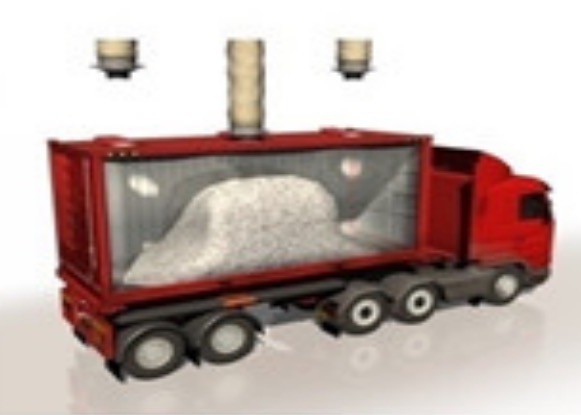

Q235 98% Filling Efficiency 20m Bulk Truck Loading System 0Q235 98% Filling Efficiency 20m Bulk Truck Loading System 1

Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
