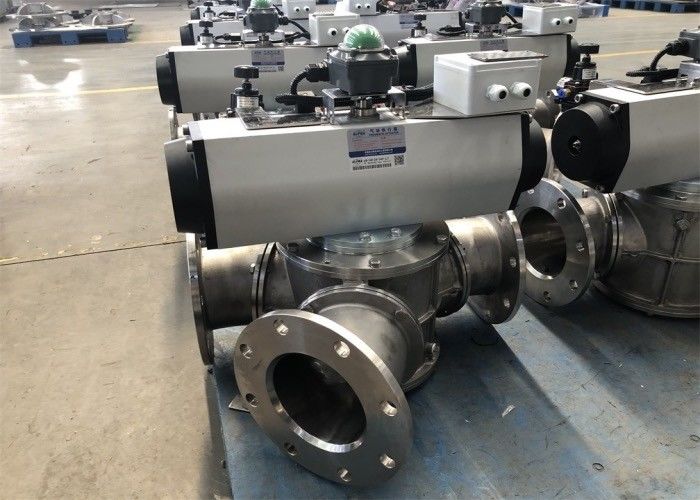

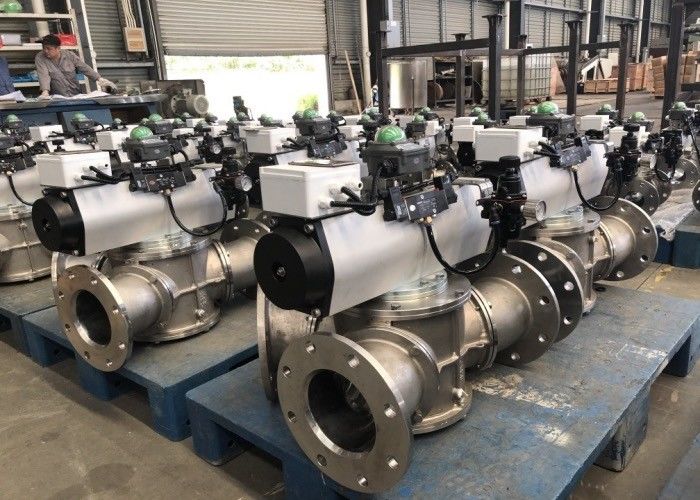

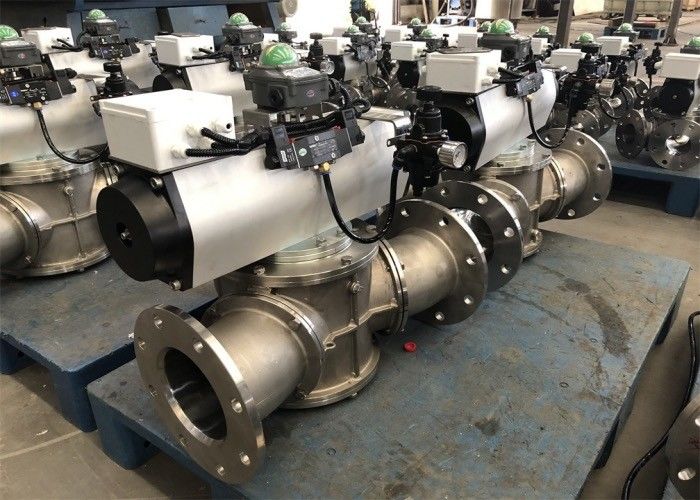

ANSI B16.5 Indoor 0.35Mpa SS316 Flap Diverter Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Driving Methord: Pneumatic, Electric, Manual Etc.
Clylinder Brand: Can Be Selected Location: Indoor/outdoor
High Light:

0.15Mpa stainless steel diverter valve

,

0.35Mpa Flap Diverter Valve

,

SS316 Flap Diverter Valve

Product Description

SS316 Flap diverter valve can be applicable for unloading,packing,mixing



Hanrui Puzer is professional as one of the leading swing plate diverter valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy swing plate diverter valve at best price with us. We will offer you the greatest after-sales service and fast delivery.



Flap diverter valve is applicable for unloading,packing,mixing, dedusting, metering,rationing conveying of solid material(powder,particles and its mixture) conveying system.



Products Feature

  • As per meterials characteristics and conveying conditions, there are sveral configurable types: ball type ,rotating plate type, barrel type and swing plate type;
  • The client can freely select the suitable installation angle and direction as the need of per conveying pipeline.
  • Under the pressure and seal conditions, special seal strucure can be equipped to fully satisfy with the application requiremnets.



The related technical parameters of two way diverter valve:

Structure type Ball Type flap Type Rotating Plate Type Swing Plate Type
Piping Include Angle 45° 30° 22.3° 45°
60° 45° 30° 60°
90° 60° 45° 90°
120° 90° 60° 120°
Main Size DN40-600 DN50-800 DN50-800 DN100-1000
Working Pressure ATM/LP MP HP
ATM/<0.1Mpa 0.15~0.35Mpa >0.35Mpa
Working Temperature -20℃~200℃/≤450℃/≤720℃
Main Materials SS304, SS304L, SS316, SS316L, SS836L, WCB, QT500 and etc.
Flange Conn. Rating ANSI B16.5 150LB, GB, HG, SH or designated by client
Applicable Medium Solid material(Power, particles, powders/particles mixtures, flakes and etc)



ANSI B16.5 Indoor 0.35Mpa SS316 Flap Diverter Valve 0



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.



Shipping

  1. We ship out your order by sea or air according to customer‘s request.
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways.
