Piping Included Angle 22.3° SS316L Y Diverter Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Working Pressure: ATM/LP/MP/HP
Working Temperature: ≤500℃ Appliable Medium: Powder, Particles, Flakes Etc.
High Light:

22.3° Diverter Valve

,

0.1MPA Y Diverter Valve

,

SS316L Y Diverter Valve

Product Description

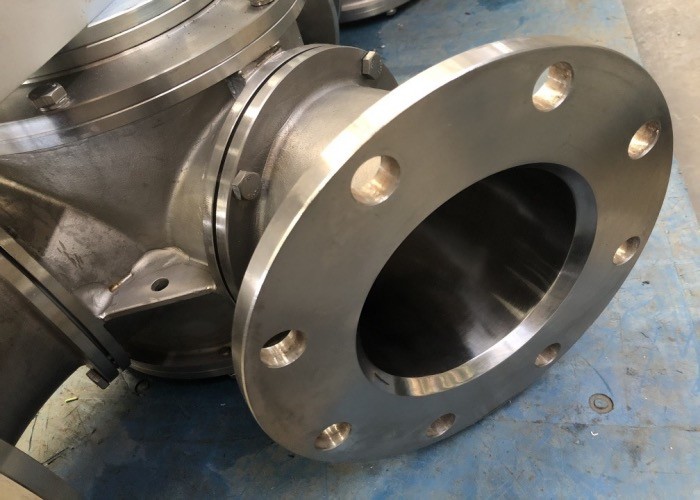

SS316L Y shape diverter valve with piping included angle 22.3°



Product details

  • Working pressure of rotating plate type diverter valve:=0.1MPA
  • Working temperature of rotating plate type diverter valve: -20℃~500℃
  • Main size: DN50-800
  • Main material: SS304, SS304L, SS316, SS316L, WCB, QT500 and etc.
  • Driving method: Pneumatic driving, manual driving, pneumatic driving with manual or motor
  • Piping include angle:22.3°
  • Flange Connection Rating: ANSI B16.5 150LB, GB, HG, SH or designated by client



Product advantages

  • Good sealing performance of rotating plate type diverter valve
  • The client can select the suitable installation angle and direction freely, as per the need of conveying pipeline.
  • Under the pressure and seal conditions, special seal structure can be equipped to fully satisfy with the application requirement.



Product application

This rotating plate type diverter valve is mainly used in the conveying system. Its fully closed construction is suitable for outdoor.

Hanrui Puzer is professional as one of the leading rotating plate type diverter valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy rotating plate type diverter valve at best price with us. We will offer you the greatest after-sales service and fast delivery.



Main technical data sheet:

Working pressure  ATM / LP(0.1MPa) / MP (0.35MPa)/HP(0.6MPa)
Driving method pneumatic driving /manual driving/pneumatic driving with manual or motor
Working temperature  -20℃-200℃/ ≤500℃
Applicable solid materials(powder,particles,powders,powder mixttures, flakes and  etc.)



Piping Included Angle 22.3° SS316L Y Diverter Valve 0



Why Choose Us?

  • We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  • We have R&D abilities to enhance product performance and quality according to customer’s demands.
  • We can produce big size ball valves (16” to 24” / DN400 to DN600) which other companies might not be able to produce.
  • We have Metal Seated Ball Valves for high temperature media (maximum to 500°C), which is uncommon in valve production.
  • We have Multi-Port Ball Valves and 3-Way V Port Ball Valve, which are rarely found in other ball valve producers.
  • We have nearly 20 years of experience of manufacturing diverter valves.
  • We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  • Any questions will be replied within 24 hours.
