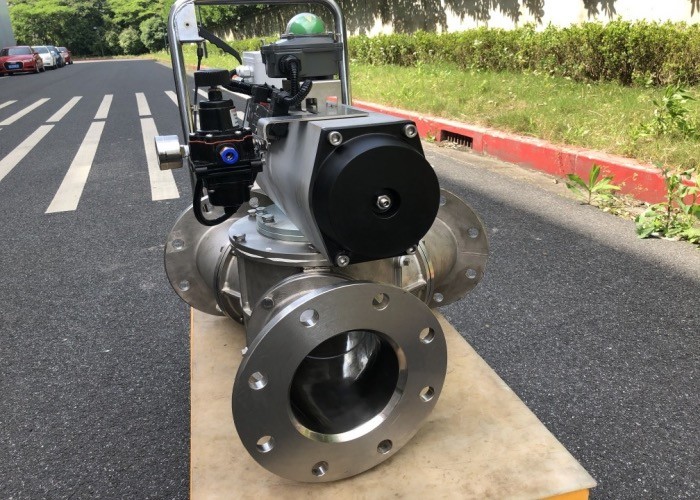

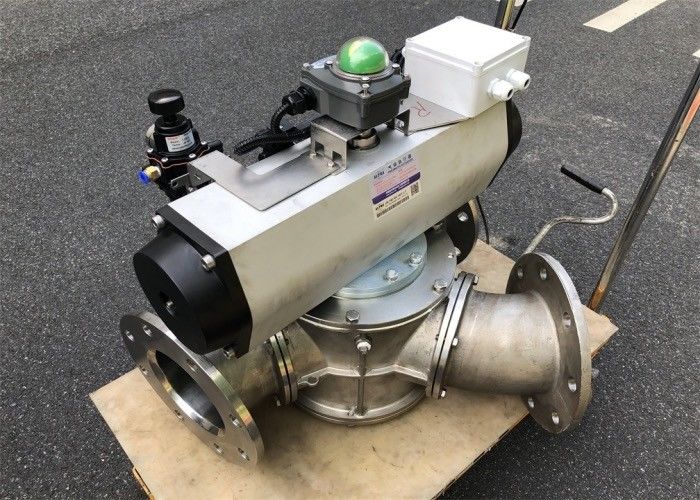

Solid Materials Three Way 0.6Mpa Direction Change Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Package Type: Stretch Film/plywood (export Package)
Working Pressure: High Pressure 0.6Mpa Applicable Media: Powder, Particles, Flakes Or Powder Mixers
High Light:

SS304 Diverter Valve

,

QT500 Direction Change Valve

,

0.6Mpa Direction Change Valve

Product Description

Variable choice of direction change valves as per material characteristics





Characteristic:

  • high polishing accuracy
  • according to the user's reality, the control system can be configured to realize full automatic operation and improve work efficiency
  • the shell and main parts are cast by casting, with solid structure, high strength, not easy to deform and beautiful appearance;
  •  the conveying channel is smooth and smooth to ensure the smooth flow of materials without blocking;
  • special sealing structure can be configured in case of pressure sealing requirements to meet the use requirements.
  • users can choose the right installation position according to the demand of the pipeline;

The three-way commutator, commonly known as the three-way reversing valve and the direction dividing valve, is a special equipment used in the conveying system of solid materials (powder foam, particle materials, powder mixture, flake, etc.) to switch the flow direction of materials in the pipeline. The fully sealed structure can be applied to the outdoor environment. Shanghai Hanrui specializes in the production of reversing valve, ball plug type, plunger type (cylinder type), rotary plate, swing plate, multi-channel type, which can be applied to the switching of various materials.



The related technical parameters of two way diverter valve:

Structure type Ball Type flap Type Rotating Plate Type Swing Plate Type
Piping Include Angle 45° 30° 22.3° 45°
60° 45° 30° 60°
90° 60° 45° 90°
120° 90° 60° 120°
Main Size DN40-600 DN50-800 DN50-800 DN100-1000
Working Pressure ATM/LP MP HP
ATM/<0.1Mpa 0.15~0.35Mpa >0.35Mpa
Working Temperature -20℃~200℃/≤450℃/≤720℃
Main Materials SS304, SS304L, SS316, SS316L, SS836L, WCB, QT500 and etc.
Flange Conn. Rating ANSI B16.5 150LB, GB, HG, SH or designated by client
Applicable Medium Solid material(Power, particles, powders/particles mixtures, flakes and etc)



Diverter valve is commanly called as 3-way direction change valves and diving valves. It is a special equipment for switching the material flow direction. Its fully closed construction is suitable for outdoor enviroment.





Solid Materials Three Way 0.6Mpa Direction Change Valve 0

About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
