V Shaped 60° Pipe Included Angle Pneumatic Diverter Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Main Size: DN400-1000
Applicable Condition: Pneumatic /gravity Etc. Seal Type: Can Be Selected
High Light:

SS316 distributing valve

,

DN400 Diverter Valve

,

Pneumatic Diverter Valve

Product Description

Pneumatic driving V shaped diverter Valve with 60° pipe included angle



Three way reversing valve (also known as three-way shunt valve and three-way commutator) is a special equipment used to switch the flow direction of materials in the pipeline in the solid material (powder, particle, powder mixture and sheet material) conveying system. The three channels of the three-way commutator are arranged in an angle, one in two out or two in one out, and the drive of the pneumatic actuator is controlled by switching the solenoid valve. The two positions of valve element action are detected by limit detection switch which is directly installed on the pneumatic actuator. When the valve is working normally, the valve element is turned to a position. After the reversing command is sent, turn to another position, and the reversing action is completed.





Characteristic:

  • the shell and main parts are tightly cast, with solid structure, high strength, not easy to deform, and beautiful appearance;
  • the conveying channel is smooth and smooth to ensure the smooth flow of materials without blocking;
  • according to the material characteristics and conveying conditions, there are many types of structure: rotating plate type and cylinder type;
  • users can choose the right installation angle according to the demand of the pipeline
  • special sealing structure can be configured for the occasion with pressure sealing requirements to fully meet the use requirements.
  • the polishing accuracy can reach 400 × 3, which can meet the requirements of food grade and drug grade;
  • various materials can be selected according to customer requirements: stainless steel (SS304, ss304l, SS316, SS316L), carbon steel, etc;
  • perfect automatic control system to ensure efficient operation reliability.



Main technical data sheet:

Working pressure   ATM / LP(0.1MPa) / MP (0.35MPa)/HP(0.6MPa)
Driving method pneumatic driving /manual driving/pneumatic driving with manual or motor
Working temperature  -20℃-200℃/ ≤500℃
Applicable solid materials(powder,particles,powders,powder mixttures, flakes and  etc.)

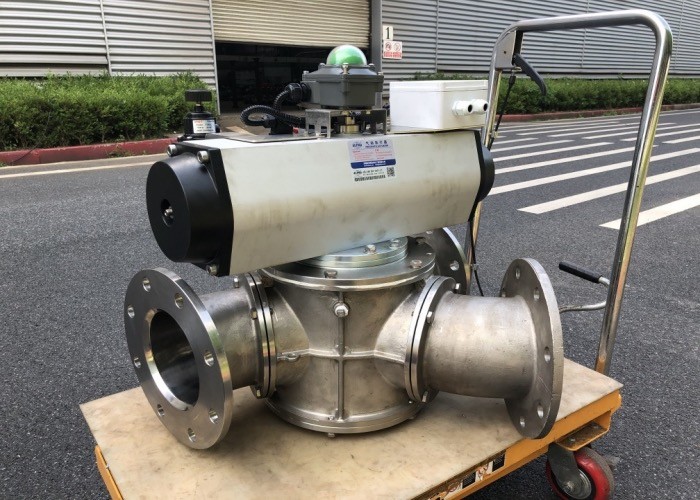

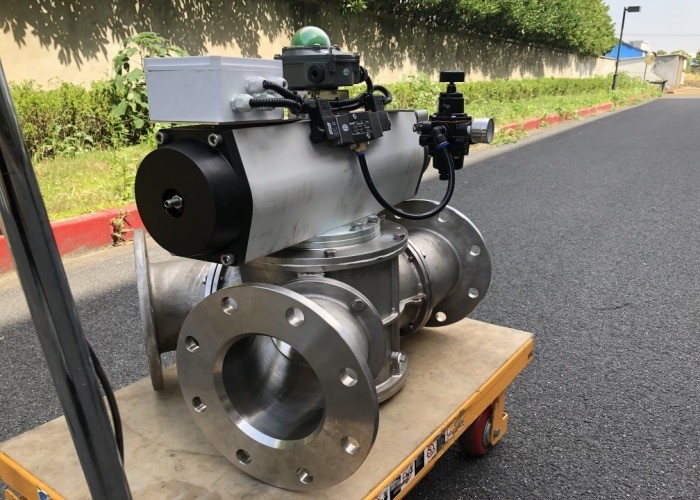

V Shaped 60° Pipe Included Angle Pneumatic Diverter Valve 0

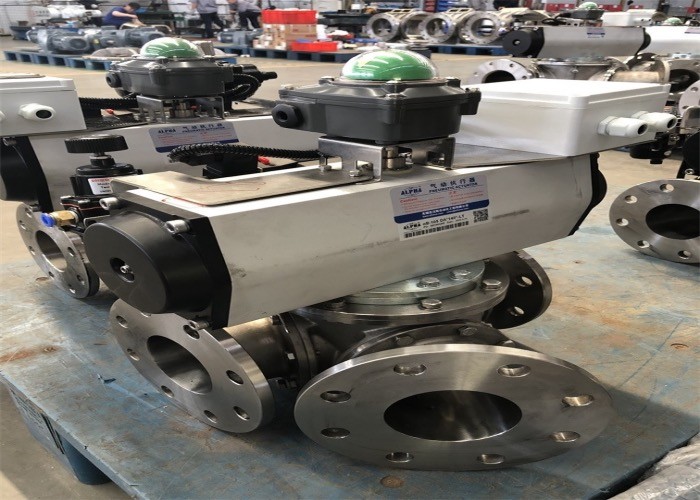

V Shaped 60° Pipe Included Angle Pneumatic Diverter Valve 1



FRQ questions:

1. Can we choose the material of the diverter valve ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the cylinder?

Yes , you can select cylinder brand according to your own requirement.
