Particles Conveying SS304 0.6 Bar DN40 Two Way Diverter Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Working Pressure: 0.1-0.6bar
Driving Method: Pneumatic, Manual,pneumatic With Motor Selected Size: DN40-DN800
High Light:

SS304 2 way diverter valve


0.6 bar two way diverter valve


DN40 two way diverter valve

Product Description

Two Way Diverter Valve suitable for powder,particles and its mixture conveying


The two way reversing valve is a special equipment used to switch the flow direction of materials in the pipeline in the solid material (powder, granular material, powder mixture, flake material) transportation system.
The two positions of the spool action are detected by the limit detection switch, which is directly installed on the pneumatic actuator.
When the valve is working properly, the spool turns to a position.
After the reversing instruction is issued, it is transferred to another position, and the reversing operation is completed.


Main technical data sheet:


Working Pressure


ATM/0.1 MPa


0.35 MPa




Working Temperature

-20℃~200℃ / ≤500℃


Main Specification

DN50~DN1000 (2”~40”)


Main Materials

SS304,SS304L,SS316,316L, WCB, QT500 and etc.


Driving Method


Pneumatic driving, Manual Driving, Pneumatic driving with manual or motor


Applicable Medium


Solid materials (Powder, Partical, Powders mixture, Flakes and ETc.)


Why Choose Us?

  • We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  • We have R&D abilities to enhance product performance and quality according to customer’s demands.
  • We can produce big size ball valves (16” to 24” / DN400 to DN600) which other companies might not be able to produce.
  • We have Metal Seated Ball Valves for high temperature media (maximum to 500°C), which is uncommon in valve production.
  • We have Multi-Port Ball Valves and 3-Way V Port Ball Valve, which are rarely found in other ball valve producers.
  • We have nearly 20 years of experience of manufacturing diverter valves.
  • We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  • Any questions will be replied within 24 hours.

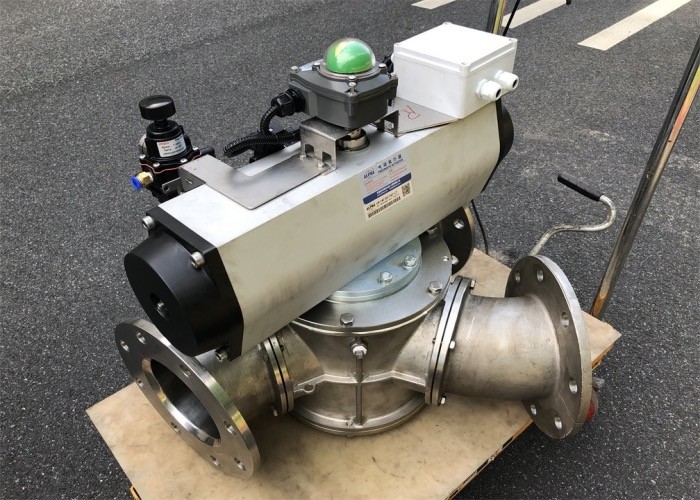

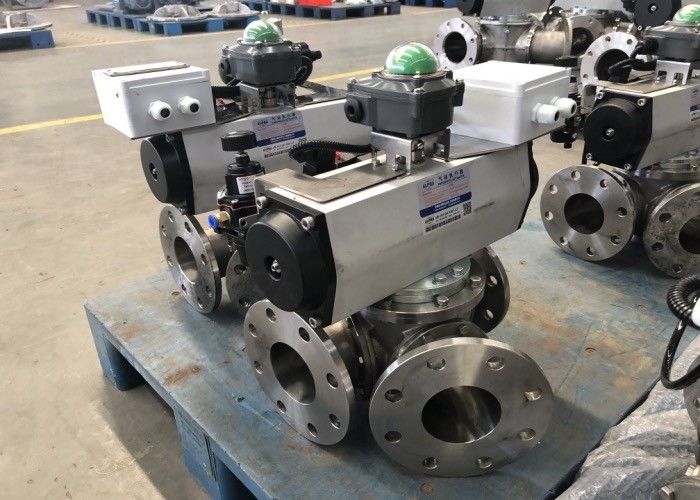

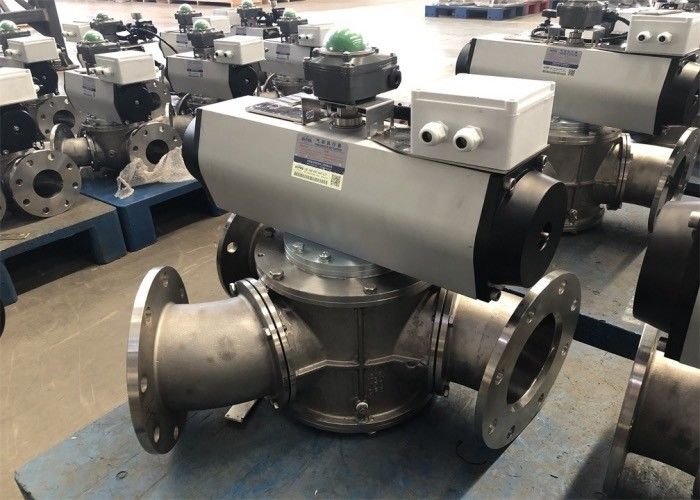

Particles Conveying SS304 0.6 Bar DN40 Two Way Diverter Valve 0Particles Conveying SS304 0.6 Bar DN40 Two Way Diverter Valve 1


About us

Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.


The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.

FRQ questions

1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
