Outdoor 60° Pipe Included Angle V Shaped Diverter Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Qualified Certification: CE Certification
Location: Indoor/outdoor Drive Type: Pneumatic, Electric, Manual Etc.
High Light:

SS316L Direction Change Valve

,

316L Diverter Valve

,

V Shaped Diverter Valve

Product Description

High quality V shaped diverter Valve with 60° pipe included angle



Diverter valve is commanly called as 3-way direction change valves and diving valves. It is a special equipment for switching the material flow direction. Its fully closed construction is suitable for outdoor enviroment.

As per meterials characteristics and conveying conditions, there are sveral configurable types: ball type ,rotating plate type, barrel type and swing plate type;under the pressure and seal conditions, special seal strucure can be equipped to fully satisfy with the application requiremnets.



Product features:
It can be applied to the switching and conveying of powder and granular materials;
The special structure can meet the requirements of customers' material switching;
The overall structure design is firm and compact, exquisite and beautiful;
Multi angle design can meet the switching requirements of various angle pipelines;
Smooth and smooth conveying channel to ensure smooth materials;
The polishing precision can reach 400 × 3, which is suitable for conveying food grade and drug grade materials;
According to the actual needs of users, we can choose a variety of main materials: stainless steel (SS304, ss304l, SS316, 316L), carbon steel, etc;
There are a variety of driving modes to choose from: manual, pneumatic;
The perfect pneumatic control system can improve the automation level and ensure the high-efficiency operation reliability.



Main technical data sheet:

Working pressure   ATM / LP(0.1MPa) / MP (0.35MPa)/HP(0.6MPa)
Driving method pneumatic driving /manual driving/pneumatic driving with manual or motor
Working temperature  -20℃-200℃/ ≤500℃
Applicable solid materials(powder,particles,powders,powder mixttures, flakes and  etc.)

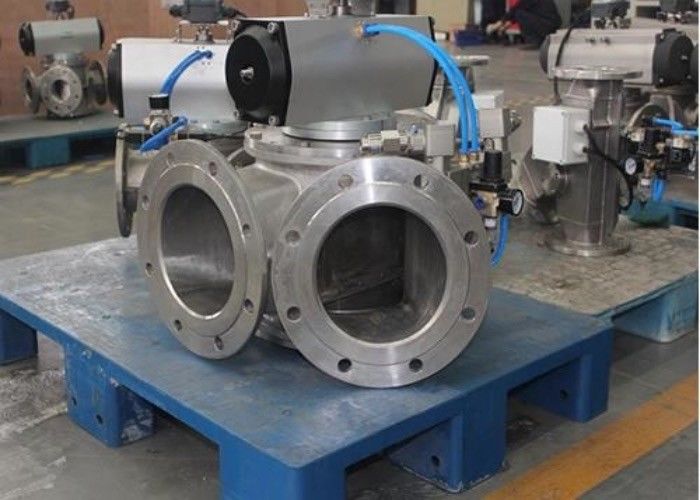

Outdoor 60° Pipe Included Angle V Shaped Diverter Valve 0

Outdoor 60° Pipe Included Angle V Shaped Diverter Valve 1



Why Choose Us?

  • We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  • We have R&D abilities to enhance product performance and quality according to customer’s demands.
  • We can produce big size ball valves (16” to 24” / DN400 to DN600) which other companies might not be able to produce.
  • We have Metal Seated Ball Valves for high temperature media (maximum to 500°C), which is uncommon in valve production.
  • We have Multi-Port Ball Valves and 3-Way V Port Ball Valve, which are rarely found in other ball valve producers.
  • We have nearly 20 years of experience of manufacturing diverter valves.
  • We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  • Any questions will be replied within 24 hours.
