V Shaped Three Way 0.6 Bar SS316L Direction Change Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Working Pressure: 0-0.6 Bar
Location: Indoor/outdoor Main Size: DN40-1000
High Light:

0.6 Bar Diverter Valve

,

DN40 Direction Change Valve

,

SS316L Direction Change Valve

Product Description

SS316L V shaped three-way direction change and dividing valves

The Diverter Valve, commonly known as the three-way reversing valve and the direction dividing valve, is a special equipment used in the conveying system of solid materials (powder foam, particle materials, powder mixture, flake, etc.) to switch the flow direction of materials in the pipeline. The fully sealed structure can be applied to the outdoor environment.



Product advantages

1. Good sealing performance of rotating plate type diverter valve

2. The client can select the suitable installation angle and direction freely, as per the need of conveying pipeline.

3. Under the pressure and seal conditions, special seal structure can be equipped to fully satisfy with the application requirement.



Product application

This rotating plate type diverter valve is mainly used in the conveying system. Its fully closed construction is suitable for outdoor.

Hanrui Puzer is professional as one of the leading rotating plate type diverter valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy rotating plate type diverter valve at best price with us. We will offer you the greatest after-sales service and fast delivery.



Main technical data sheet:

Working pressure

Atmospheric / low pressure

ATM/0.1 MPa

Medium pressure

0.35 MPa

High pressure

0.6MPa

Working temperature -20℃~200℃ / ≤500℃
Main specifications DN50~DN1000 (2”~40”)
Main materials SS304,SS304L,SS316,316L, WCB, QT500 and etc.
Driving mode Pneumatic, manual, pneumatic with manual, electric
Applicable medium

Solid material (powder foam, particle material, powder particle mixture, flake, etc.)

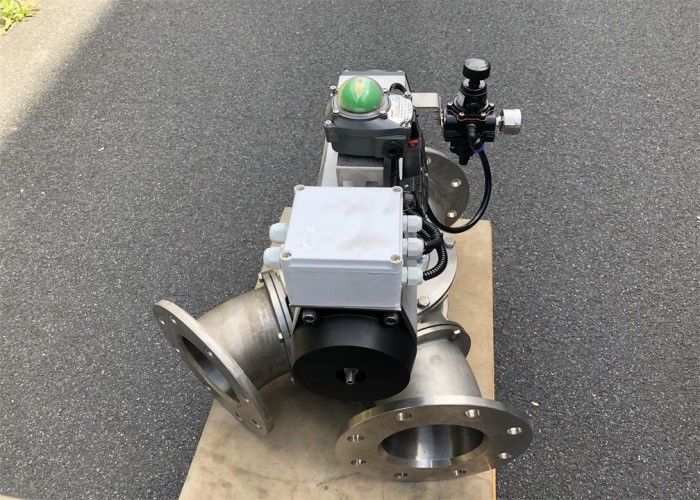

V Shaped Three Way 0.6 Bar SS316L Direction Change Valve 0

V Shaped Three Way 0.6 Bar SS316L Direction Change Valve 1



Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension
