Fully Closed DN100 3 Way Diverter Valve Ball Type

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Main Size: DN100-DN800
Certification: CE, ISO9001, ISO14001 Package: Stretch Film+plywood
High Light:

DN100 3 Way Diverter Valve

,

Fully Closed3 Way Diverter Valve

,

DN100 ball type Diverter Valve

Product Description

Fully closed direction change valves can select conveying pipeline freely



The powder three-way reversing valve adopts precision casting with beautiful appearance. It can transport chemical raw materials, such as activated carbon powder, alumina, silica, mottle, industrial dyestuff pigment, dye powder, toner powder, plastic polyethylene particle, rubber granule, cement, welding powder, quartz particle, etc, The powder three-way reversing valve adopts pneumatic control system to ensure high efficiency and reliability, and can also be equipped with manual operation device.

Three way reversing valve (also known as three-way shunt valve and three-way commutator) is a special equipment used to switch the flow direction of materials in the pipeline in the solid material (powder, particle, powder mixture and sheet material) conveying system. The three channels of the three-way commutator are arranged in an angle, one in two out or two in one out, and the drive of the pneumatic actuator is controlled by switching the solenoid valve.

The two positions of valve element action are detected by limit detection switch which is directly installed on the pneumatic actuator. When the valve is working normally, the valve element is turned to a position. After the reversing command is sent, turn to another position, and the reversing action is completed.



Main Technical Parameter:



Working Pressure

ATM/LP

ATM/0.1 MPa

MP

0.35 MPa

HP

0.6MPa

Working Temperature

-20℃~200℃ / ≤500℃

Main Specification

DN50~DN1000 (2”~40”)

Main Materials

SS304,SS304L,SS316,316L, WCB, QT500 and etc.

Driving Method

Pneumatic driving, Manual Driving, Pneumatic driving with manual or motor

Applicable Medium

Solid materials (Powder, Partical, Powders mixture, Flakes and ETc.)

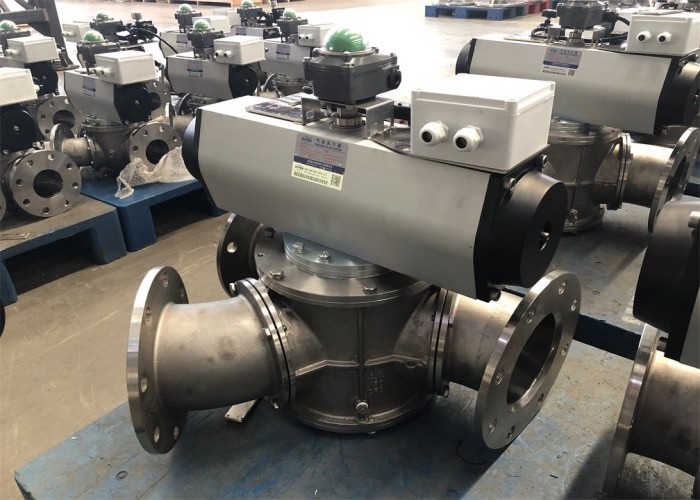

Fully Closed DN100 3 Way Diverter Valve Ball Type 0

Fully Closed DN100 3 Way Diverter Valve Ball Type 1
