Bulk Material Energy Saving 80m Tubular Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Length: Less Than 80M (horizontal) Accessories: Rotary Valve,screw Conveyor Etc.
Energy Consumption: Low Consumption Main Size: DN80-400
Conveying Material: Powder/particles/flakes Etc. Applied Field: Chemical/food/petrol Etc.
Shipping: By Sea/air Etc.
High Light:

300m³/h tubular drag conveyor

,

60m Tubular Chain Conveyor

,

80m Tubular Chain Conveyor

Product Description

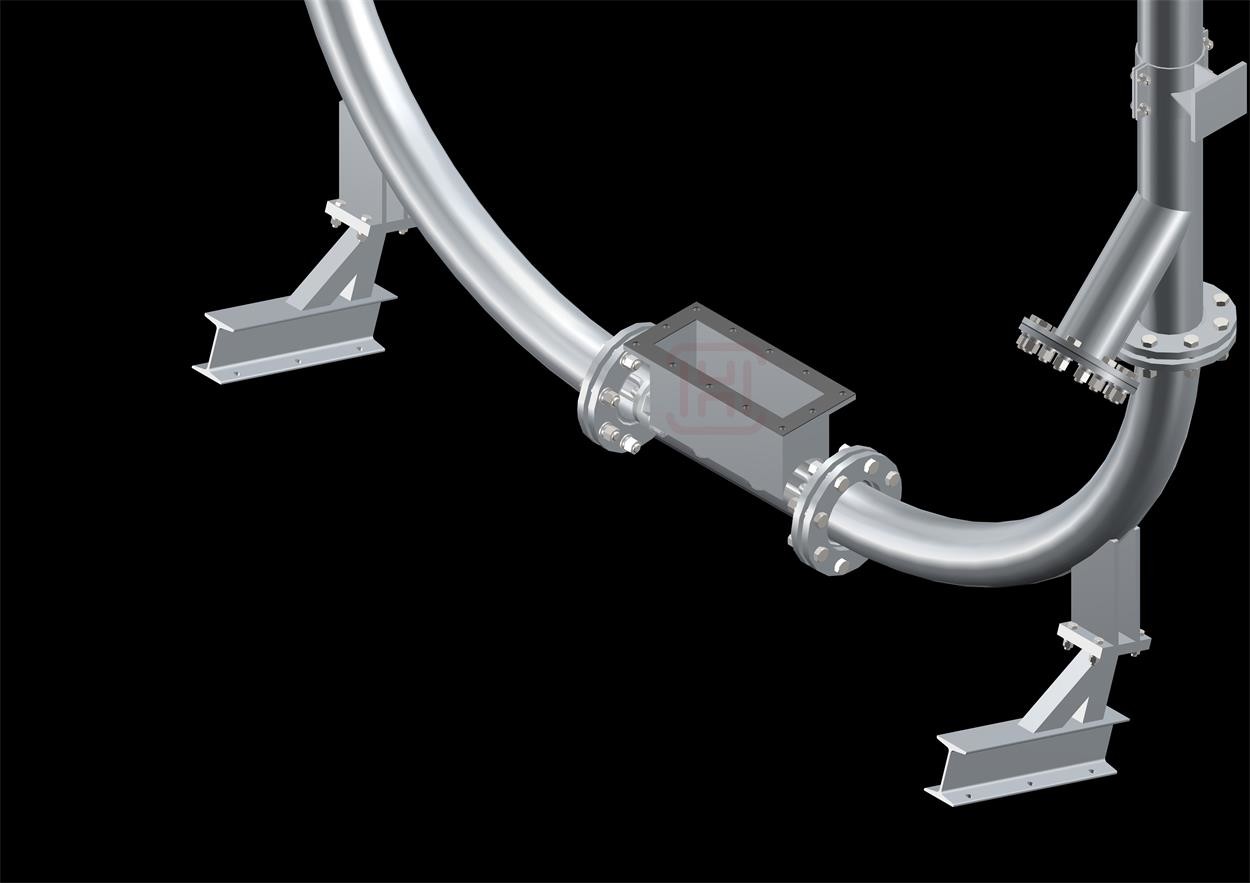

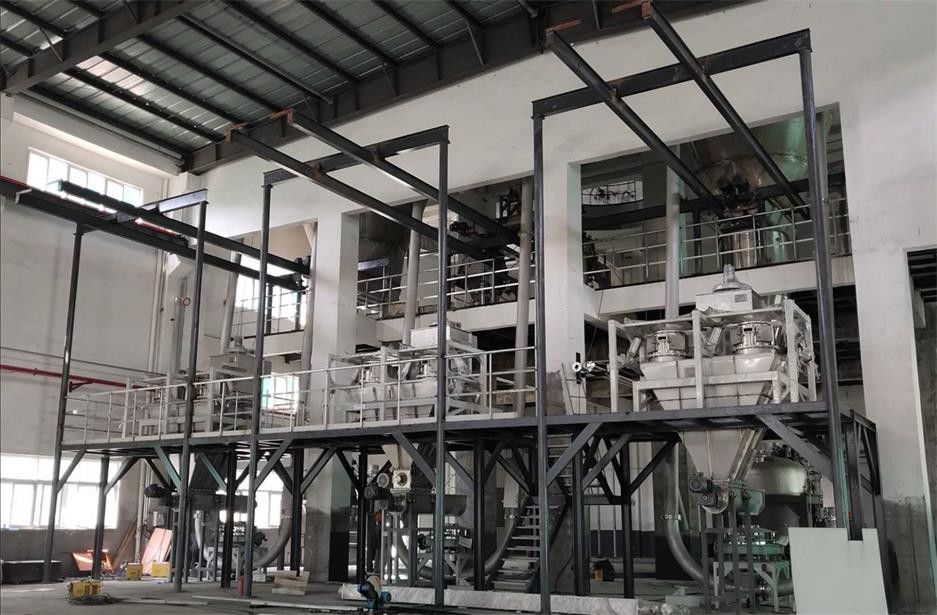

Tubular chain conveyor for continuously conveying bulk material



Tubular chain conveying solution is applicable for conveying bulk material like powder, small particle and small lump etc. It can be conveyed in horizontal, inclined, and vertical way. It is also applicable for the material conveying in explosion-proof area.



Tubular Drag Conveyors, sometimes called tubular drag chain conveyor, is a mechanical system that operates within the confines of a pipe. Its feature is the stable property and saving the energy consumption in conveying system. It can contiguously convey powder, small particle and small lump and so on the bulk material, can convey in the level, the incline and the vertical . It widely applies in the chemical industry, the chemical fiber, the agricultural chemicals ore, the food industry, the Building materials profession, ect.



Tube Chian Conveyor Design Data:

Capacity = 300m3/h

Length: horizontal =80m Vertical =60m

Single machine power: =15KW

Main technical parameters for DN100 tubular chain conveyor:



Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00



This solution can be designed according to the different material, conveying distance, and downstream or upstream requirements, including the explosion-proof area.

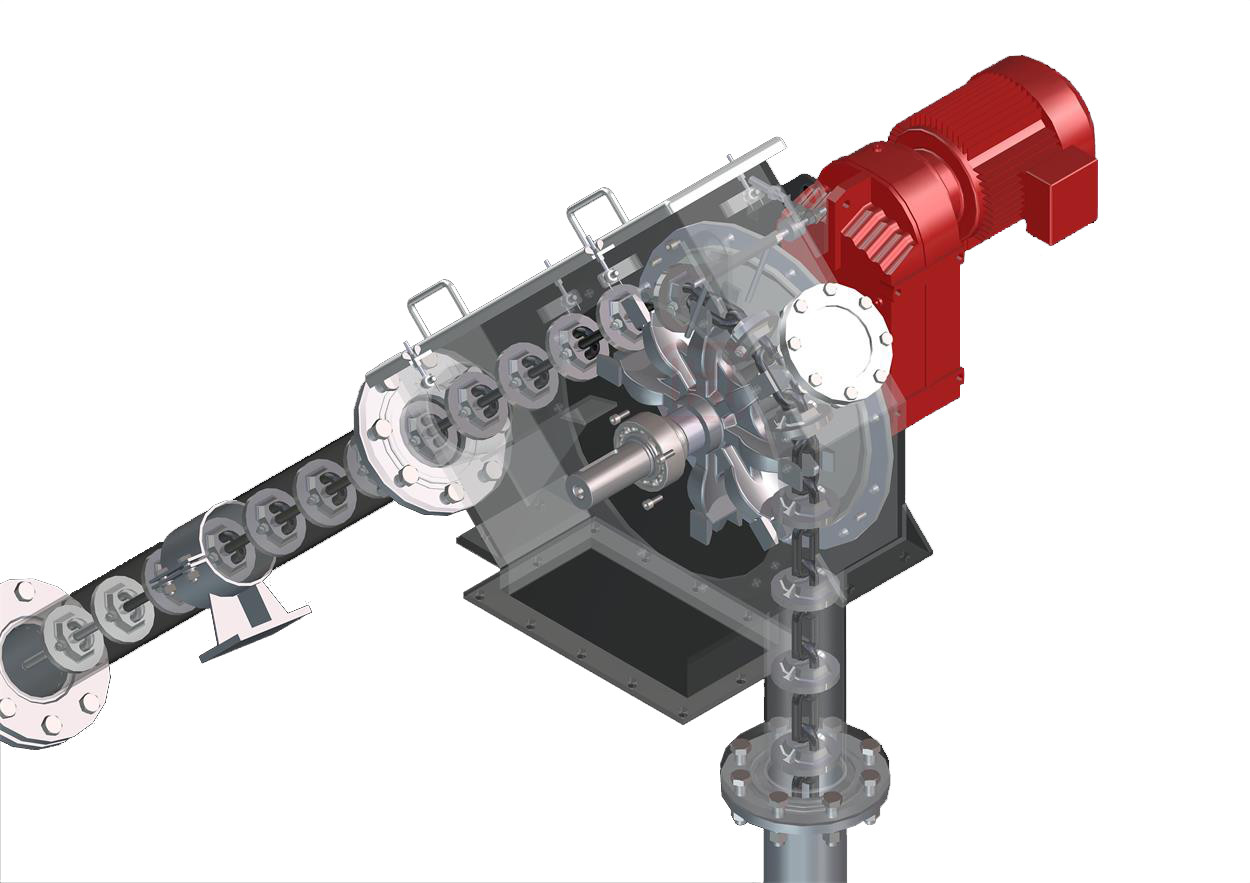

The chain, as the drive device, drives the material moving in the closed pipeline.

When conveyed horizontally, the solid material is pushed by disk in the running way. When the internal friction of the material layer is larger than the external friction between the material and pipe wall, the material will move forward via the disks and form stable material flow;

When conveyed vertically, the material is pushed up by the disks, at the same time, the bottom feeding will prevent the upper material from falling down, thus generates horizontal side pressure which increases the internal friction. When the internal friction between the materials is larger than the external friction between the material and pipe wall and its own gravity, the material will move upward via disks and thus forms continuous material flow.



About us



Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.



FRQ questions:

1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
