Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Hanrui |
Certification: | CE |
Model Number: | HTC80-400 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiable |
Packaging Details: | stretch film |
Delivery Time: | 4-8 weeks |
Payment Terms: | T/T, Western Union, T/T |
Supply Ability: | 600sets/year |
Detail Information |
|||
Material: | SS304, SS316, SS316L, Q235 | Capacity: | Less Than 300m³/h |
---|---|---|---|
Length: | Less Than 80M (horizontal) | Accessories: | Rotary Valve,slide Gate Valve Etc. |
Single Power: | Less Than 15KW | Installation Direction: | Vertical/horizontal |
Working Voltage: | 380V, 3P , 50HZ | Motor Brand: | Can Be Selected |
High Light: | 3P tubular drag conveyor,50HZ Tubular Chain Conveyor,380V Tubular Chain Conveyor |
Product Description

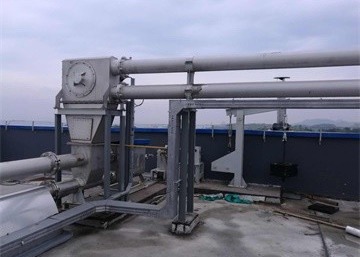

no need dust collector tubular drag conveyor system for powder conveying
The chain, as the drive device, drives the material moving in the closed pipeline.
When conveyed horizontally, the solid material is pushed by disk in the running way. When the internal friction of the material layer is larger than the external friction between the material and pipe wall, the material will move forward via the disks and form stable material flow;
When conveyed vertically, the material is pushed up by the disks, at the same time, the bottom feeding will prevent the upper material from falling down, thus generates horizontal side pressure which increases the internal friction. When the internal friction between the materials is larger than the external friction between the material and pipe wall and its own gravity, the material will move upward via disks and thus forms continuous material flow.
Tube Chian Conveyor Design Data:
Capacity = 300m3/h
Length: horizontal =80m Vertical =60m
Single machine power: =15KW
Main technical parameters for DN100 tubular chain conveyor:
Q(m³/h) | 1.25 | 2.00 | 2.65 | 4.00 | 5.50 | 7.00 | 8.75 |
P(KW) | 0.75 | 1.10 | 1.50 | 2.20 | 3.00 | 4.00 | 4.00 |
V(m/s) | 0.06 | 0.09 | 0.13 | 0.19 | 0.26 | 0.33 | 0.42 |
n(1/min) | 3.20 | 5.40 | 7.30 | 11.00 | 15.00 | 19.00 | 4.00 |
Tubular Conveyor Features:
1. Provides totally enclosed, dust-free, contamination-free handling,no need dust collector at the discharge.
2. Requires minimum horsepower and energy consumption.
3. Handles hot, cold, wet, dry, hygroscopic or temperature sensitive materials.
4. Self feeding with most flowable materials.
5. Gentle conveying action minimizes product attrition.
6. May discharge at multiple points in circuit; no special airlocks are required.
7. Operates at a minimum noise level.
8. Easily assembled in the field.
9. Saving cross-section Space,can be installed where other conveyor types cannot.
10. Food grade, polished stainless steel chain for food and pharmaceutical applications in sanitary environments.
11. Wide range of sizes and materials of construction as required.
About us
Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.
The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.
