No Pollution SS304 Food Grade DN100 Tube Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 5000-50000USD
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Horizonta Length: Less Than 80M (horizontal) Accessories: Rotary Valve,slide Gate Valve Etc.
Type: Clean/normal/customized Etc. Single Machine Power: 15KW
VerticalLength: 60m Applicable Industry: Chemical, Petroleum , New Energy Etc.
High Light:

SS304 chain vey conveyor

,

300m³/h tube chain conveyor

,

tube chain conveyor

Product Description



SS304 food grade tube chain conveyor with stainless steel chain



Solution Features:

  • Without dust because it is totally closed, no pollution, no need to install other dust solution equipments
  • Enhance the abrasion performance of the disks according to the condition, lower the maintenance cost
  • Flexible solution can be provided according to customers’ different working condition. Manual feeding, tank truck feeding and container feeding can be adopted. Multiple feeding, multiple discharging can be achieved to optimize the solution
  • High-degree automation control method can be adopted to improve the modern level



Tube Chian Conveyor Design Data:

Capacity = 300m3/h

Length: horizontal =80m Vertical =60m

Single machine power: =15KW

Main technical parameters for DN100 tubular chain conveyor:



Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00



Related parameters:

  • Conveying capacity≤ 300m3/h
  • Conveying distance:
  • Horizontal distance≤ 80m
  • Vertical distance≤ 60m
  • Single machine power≤22KW
  • Working temperature:-20~200°C
  • Working pressure:
  • ATM/Micro-postive pressure
  • Chain Line Speed:≤ 0.45m/s (DN200)
  • Disc material:PA,PE,PU,POM,PTFE
  • Chain material:
  • Stainless steel, carbon steel etc.
  • Pipeline:Internally polished seamless stainless steel pipes and cold-formed elbows

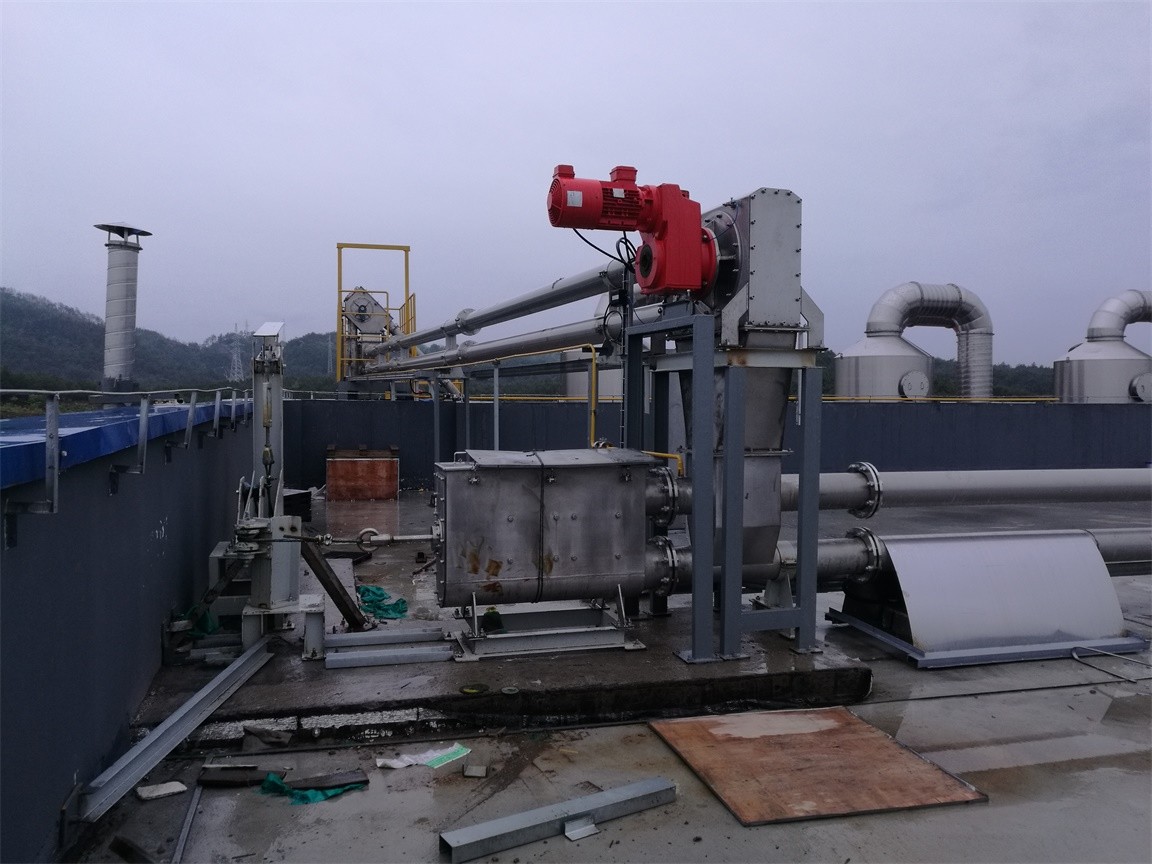

No Pollution SS304 Food Grade DN100 Tube Chain Conveyor 0

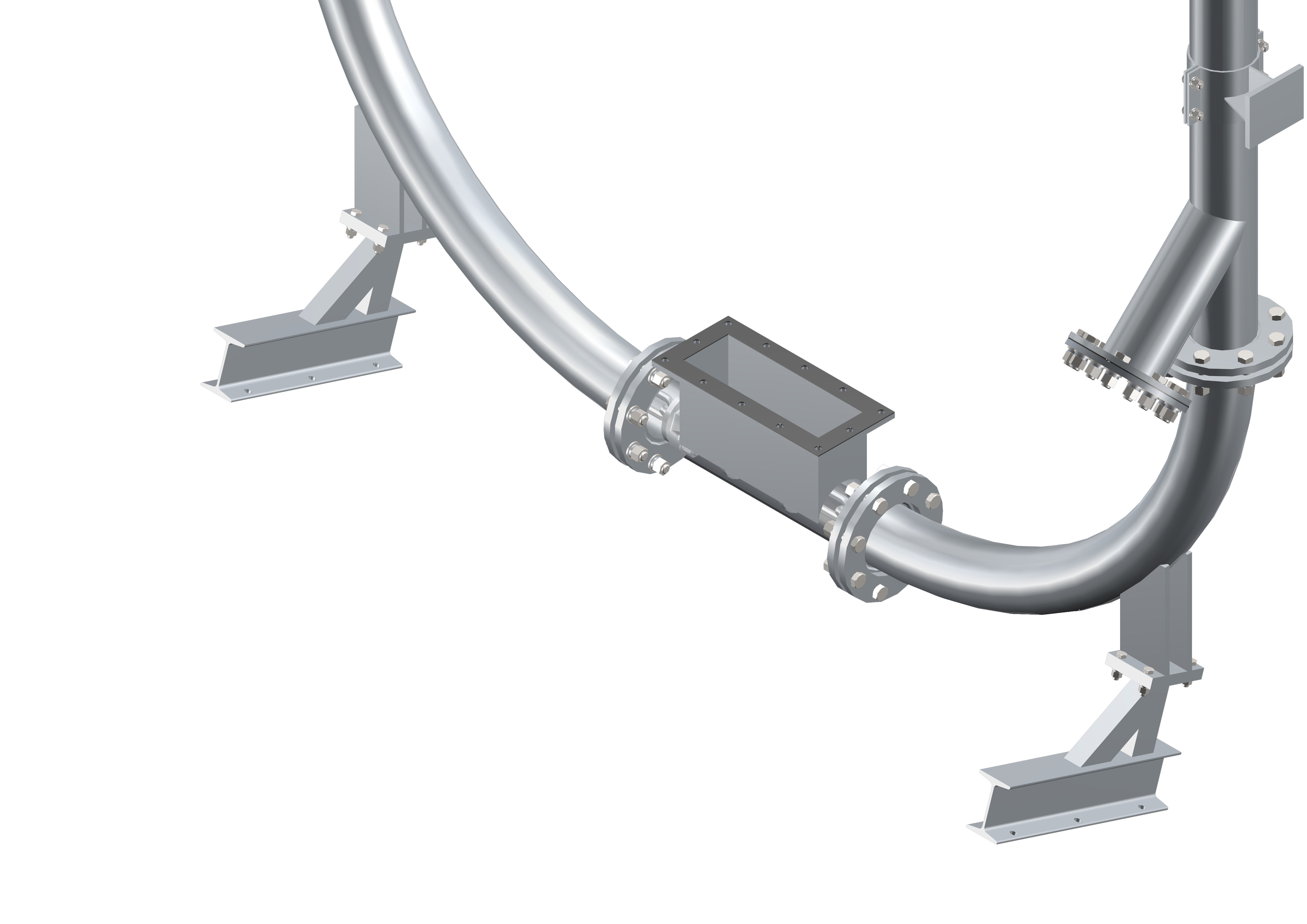

No Pollution SS304 Food Grade DN100 Tube Chain Conveyor 1



About us



Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.
