China Solid Conveying System manufacturer

Material Handling DN80 Drag Tubular Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Length: Less Than 80M (horizontal) Accessories: Rotary Valve,slide Gate Valve Etc.
Single Power: Less Than 15KW Main Size: DN80-400
Applicable Industry: Chemical/fiber/dye Etc. Pollution: No Pollution
Noise: Low Noise
High Light:

DN80 Tubular Chain Conveyor

,

DN80 drag chain conveyor

,

Q235 drag chain conveyor

Product Description

tubular drag conveyor system with rotary valves for bulk material handling

  1. A structural drag chain conveyor is designed for ultra-heavy-duty applications. The conveyor moves at a slower rate than other drag conveyors but it can handle a wide range of often difficult to convey products.
  2. The conveyor provides gentle handling and low material degradation. It is also totally enclosed and dust-free.

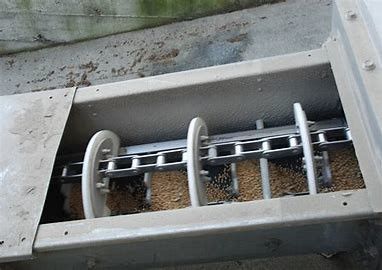

  3. With this system, a series of straight and curved pipes are coupled to housings in a layout designed for your specific site and application requirements. The conveyor forms a circuit where the product can enter and exit through multiple chutes. When the drag chain conveyor is in motion, the discs drag material through the circuit which is driven by a sprocket at one end. More sprockets can be added to the circuit to provide frictionless direction changes and/or reduce the system load.



Tubular chain conveying solution is applicable for conveying bulk material like powder, small particle and small lump etc. It can be conveyed in horizontal, inclined, and vertical way. It is also applicable for the material conveying in explosion-proof area.

This solution can be designed according to the different material, conveying distance, and downstream or upstream requirements, including the explosion-proof area.



Tube Chian Conveyor Design Data:

  • Capacity = 300m3/h
  • Length: horizontal =80m Vertical =60m
  • Single machine power: =15KW

Main technical parameters for DN100 tubular chain conveyor:

Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00



Tubular Conveyor Features:



1. Provides totally enclosed, dust-free, contamination-free handling,no need dust collector at the discharge.

2. Requires minimum horsepower and energy consumption.

3. Handles hot, cold, wet, dry, hygroscopic or temperature sensitive materials.

4. Self feeding with most flowable materials.

5. Gentle conveying action minimizes product attrition.

6. May discharge at multiple points in circuit; no special airlocks are required.

7. Operates at a minimum noise level.

8. Easily assembled in the field.

9. Saving cross-section Space,can be installed where other conveyor types cannot.

10. Food grade, polished stainless steel chain for food and pharmaceutical applications in sanitary environments.

11. Wide range of sizes and materials of construction as required.



Why Choose Us?

  1. We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  2. We have R&D abilities to enhance product performance and quality according to customer’s demands.
  3. We have nearly 20 years of experience in bulk material area.
  4. We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  5. Any questions will be replied within 24 hours.



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
