Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Hanrui |
Certification: | CE |
Model Number: | HTC80-400 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | 5000-50000USD |
Packaging Details: | stretch film |
Delivery Time: | 4-8 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 600sets/year |
Detail Information |
|||
Material: | SS304, SS316, SS316L, Q235 | Capacity: | Less Than 300m³/h |
---|---|---|---|
Length: | Less Than 80M (horizontal) | Vertical Length: | 60m |
Accessories: | Rotary Valve,slide Gate Valve Etc. | Single Power: | Less Than 15KW |
High Light: | SS304 chain tube conveyor,SS304 chain drag conveyor,bulk material chain drag conveyor |
Product Description

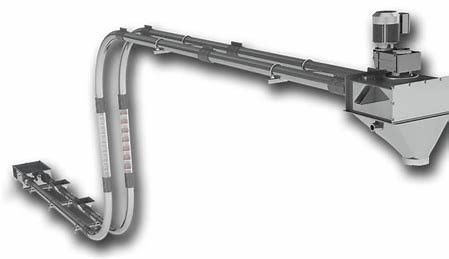

SS304 Indoor/outdoor installed tubular drag conveyors for powder
If you need to transport bulk materials or food products in a way that minimizes breakage and degradation, our Tubular Chain Conveyors are the right solution for you. Take a look at our brochure for additional information on the conveyor capacities, chain speeds, volumetric feed rates, and more.
Tubular Drag Conveyors, sometimes called tubular drag chain conveyor, is a mechanical system that operates within the confines of a pipe. Its feature is the stable property and saving the energy consumption in the conveying system. It can contiguously convey powder, small particle and small lump and so on the bulk material, can convey in the level, the incline and the vertical . It widely applies in the chemical industry, the chemical fiber, the agricultural chemicals ore, the food industry, the Building materials profession, ect.
Tube Chian Conveyor Design Data:
Capacity = 300m3/h
Length: horizontal =80m Vertical =60m
Single machine power: =15KW
Main technical parameters for DN100 tubular chain conveyor:
Q(m³/h) | 1.25 | 2.00 | 2.65 | 4.00 | 5.50 | 7.00 | 8.75 |
P(KW) | 0.75 | 1.10 | 1.50 | 2.20 | 3.00 | 4.00 | 4.00 |
V(m/s) | 0.06 | 0.09 | 0.13 | 0.19 | 0.26 | 0.33 | 0.42 |
n(1/min) | 3.20 | 5.40 | 7.30 | 11.00 | 15.00 | 19.00 | 4.00 |
Tubular Conveyor Features:
1. Provides totally enclosed, dust-free, contamination-free handling,no need dust collector at the discharge.
2. Requires minimum horsepower and energy consumption.
3. Handles hot, cold, wet, dry, hygroscopic or temperature sensitive materials.
4. Self feeding with most flowable materials.
5. Gentle conveying action minimizes product attrition.
6. May discharge at multiple points in circuit; no special airlocks are required.
7. Operates at a minimum noise level.
8. Easily assembled in the field.
9. Saving cross-section Space,can be installed where other conveyor types cannot.
10. Food grade, polished stainless steel chain for food and pharmaceutical applications in sanitary environments.
11. Wide range of sizes and materials of construction as required.
Please point out the details of the following items while order:
1. Location: indoor or outdoor
2. Kindly provide he installment position and the conveying distance
3. Capacity(KG/H), and remark the ration conveying or variable conveying
4. Product characteristic:name, size ,bulk density, temperature, stickness and other special characteristics
5. Flange standard and flange dimension
6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
About us
Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.
The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.
FRQ questions
1. Can we choose the material of the equipment ?
Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .
2. What should we supply you when we need to select a proper size ?
You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.
3. What is other information we need to supply before get a quotation?
We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .
4. Can we choose the brand of the motor & reducer ?
Yes , you can select motor and reducer brand according to your own requirement.
