SS316L 300m3/H Structural Tubular Drag Conveyor Fully Enclosed

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 5000-50000USD
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Length: Less Than 80M (horizontal) Location: Indoor Or Outdoor
Single Power: Less Than 15KW Vertical Length: 60m
High Light:

SS316L tubular drag conveyor

,

300m3/h tubular drag conveyor

,

SS316L tubular drag chain conveyor

Product Description

Multiple points tubular drag chain conveyor with low noisy discs

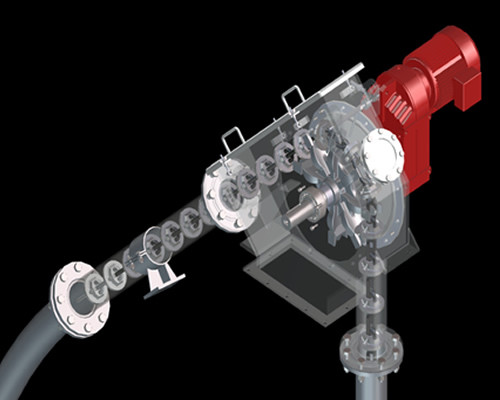

Totally Enclosed, Dust-free, Contamination-free Handling, All conveying takes place in a totally sealed structural system, which ensures the dust-free transfer of material. Material is fed into the pockets formed between the discs within the conveying pipe. The chain and discs gently move through the enclosed circuit pulling the material along until it reaches the outlet. This type of gentle conveying action minimizes product degradation and also maintains blends. Structural drag chain conveyors can operate in three (3) planes. This layout flexibility enables our engineers to design complex circuits which eliminates transfer points while using a single drive.





The pipe chain transportation solution is suitable for continuous transportation of powder, small granule, small block and other bulk materials. It can be transported horizontally, obliquely and vertically. It can also be used for material transportation in explosion-proof area.


The solution can be designed according to different materials, different conveying distance and different upstream and downstream needs of customers, including the material transportation applied in explosion-proof area.



Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements



Tube Chian Conveyor Design Data:

Capacity = 300m3/h

Length: horizontal =80m Vertical =60m

Single machine power: =15KW



Main technical parameters for DN100 tubular chain conveyor:

Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00
