Material Handling Tubular Chain Conveyor No Pollution SS316L Structural Drag Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Length: Less Than 80M (horizontal) Accessories: Rotary Valve,slide Gate Valve Etc.
Single Power: Less Than 15KW Main Size: DN80-400
Applicable Industry: Chemical/fiber/dye Etc. Pollution: No Pollution
Noise: Low Noise
High Light:

Material Handling Tubular Chain Conveyor

,

Material Handling structural drag chain conveyor

,

SS316L structural drag chain conveyor

Product Description

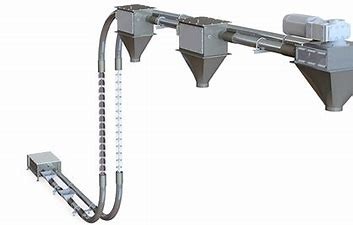

tubular drag conveyor system with rotary valves for bulk material handling

  1. A structural drag chain conveyor is designed for ultra-heavy-duty applications. The conveyor moves at a slower rate than other drag conveyors but it can handle a wide range of often difficult to convey products.
  2. The conveyor provides gentle handling and low material degradation. It is also totally enclosed and dust-free.
  3. With this system, a series of straight and curved pipes are coupled to housings in a layout designed for your specific site and application requirements. The conveyor forms a circuit where the product can enter and exit through multiple chutes. When the drag chain conveyor is in motion, the discs drag material through the circuit which is driven by a sprocket at one end. More sprockets can be added to the circuit to provide frictionless direction changes and/or reduce the system load.



Tubular chain conveying solution is applicable for conveying bulk material like powder, small particle and small lump etc. It can be conveyed in horizontal, inclined, and vertical way. It is also applicable for the material conveying in explosion-proof area.

This solution can be designed according to the different material, conveying distance, and downstream or upstream requirements, including the explosion-proof area.



Tube Chian Conveyor Design Data:

  • Capacity = 300m3/h
  • Length: horizontal =80m Vertical =60m
  • Single machine power: =15KW

Main technical parameters for DN100 tubular chain conveyor:

Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00



Tubular Conveyor Features:



1. Provides totally enclosed, dust-free, contamination-free handling,no need dust collector at the discharge.

2. Requires minimum horsepower and energy consumption.

3. Handles hot, cold, wet, dry, hygroscopic or temperature sensitive materials.

4. Self feeding with most flowable materials.

5. Gentle conveying action minimizes product attrition.

6. May discharge at multiple points in circuit; no special airlocks are required.

7. Operates at a minimum noise level.

8. Easily assembled in the field.

9. Saving cross-section Space,can be installed where other conveyor types cannot.

10. Food grade, polished stainless steel chain for food and pharmaceutical applications in sanitary environments.

11. Wide range of sizes and materials of construction as required.



Why Choose Us?

  1. We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  2. We have R&D abilities to enhance product performance and quality according to customer’s demands.
  3. We have nearly 20 years of experience in bulk material area.
  4. We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  5. Any questions will be replied within 24 hours.
