China Solid Conveying System manufacturer

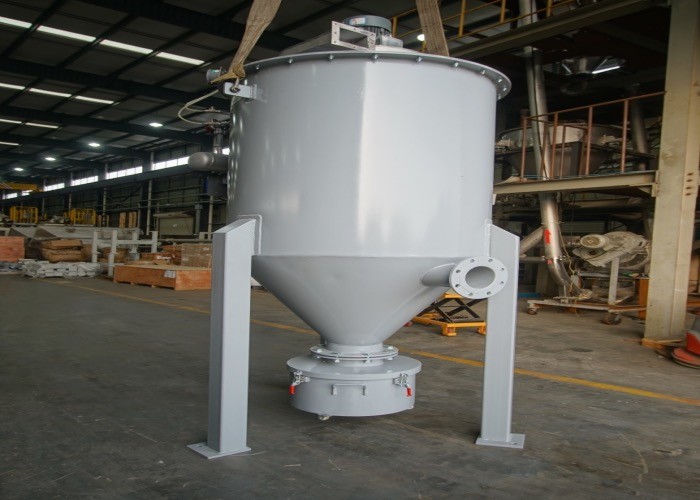

Superfine 0.4MPa Industrial Dust Collector With Tectorial Membrane

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HFT15AP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/year

Detail Information

Filter Efficiency: 99.99% Working Temperature: Less Than 204 ℃
Flaw Resistance: 25kg/m³ Other: Resistance Acid& Alkali
Material: SS304, SS316, SS316L , Q235 De-dust Concentration: Less Than 1mg/m³
Shipping Type: By Sea/by Air/by Land Etc. Packaging: Plywood /stretch Film Etc.
High Light:

99.99% Industrial Dust Collector

,

0.4MPa Industrial Dust Collector

,

25kg/m³ dust collection equipment

Product Description

Customized dust filters for superfine dust filtration with tectorial membrane



Dust collector is designated to separate superfine particle or even sub-micron dust from process gas with micropore fiber material. It is widely applied to chemical industries, food, medicine , electric power,metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use. A dust collector is a system used to enhance the quality of air released from industrial and commercial processes by collecting dust and other impurities from air or gas.

We are a prominent manufacturer of a wide range of Dust Extraction and Dust Collector System for every segment of the industry in Shanghai China.

The offered range of these Dust Extraction System can be availed from us at comprehensive prices.

Model Parameters HFD-32 HFD-48 HFD-64 HFD-80 HFD-96 HFD-112
Air Volume(m3·h) 1500-2100 2100-3200 2900-4300 4000-6000 5200-7000 6000-9000
Filter Area(m2) 24 36 48 60 72 84
Filter Wind Speed(m/min) 1.0—1.5 1.0—1.5 1.0—1.5 1.1—1.7 1.2—1.7 1.2—1.8
Material can be selected can be selected can be selected can be selected can be selected can be selected
Entrance Gas Temperature(℃) ≤120
Equipment Resistance(Pa) ≤1200
Soot Cleaning With Air Pressure(MPa) 0.4~0.6
No.of Pulse Valve 4 6 8 10 12 14
Blower Motor Power(KW) 1.5 3 3 5.5 5.5 7.5



Product features:

1. Filter material with tectorial membrane, electric conduction polyester dipping treatment

2. Be able to make surface smooth if needed

3. Resistance to acid and alkali, resistance to moisture, non-bond on filter surface

4. We can follow request of consumer to complete modification works. Increase process capacity and retain originally space. Offer optimum design, equipment and intelligence detecting and control system.



Product application

Bag filter is widely used to cement, power plant, casting plant, electric power, metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use.

Hanrui Puzer is professional as one of the leading cartridge filter dust collector manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy cartridge filter dust collector at best price with us. We will offer you the greatest after-sales service and fast delivery.



Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
