Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hanrui |
| Certification: | CE |
| Model Number: | HFT15AP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/year |
|
Detail Information |
|||
| Filter Efficiency: | 99.999% | Working Temperature: | Less Than 204 ℃ |
|---|---|---|---|
| Flaw Resistance: | 25kg/m³ | Washable: | Can Be Washable |
| Dust Particle: | More Than 0.1um | Service Life: | More Than 10 Years |
| Inlet Concentration: | Less Than 500g/m³ | Silicon Content: | Zero Silicon |
| High Light: | 99.999% dust collection equipment,500g/m³ Industrial Dust Collector,0.1um Industrial Dust Collector |
||
Product Description

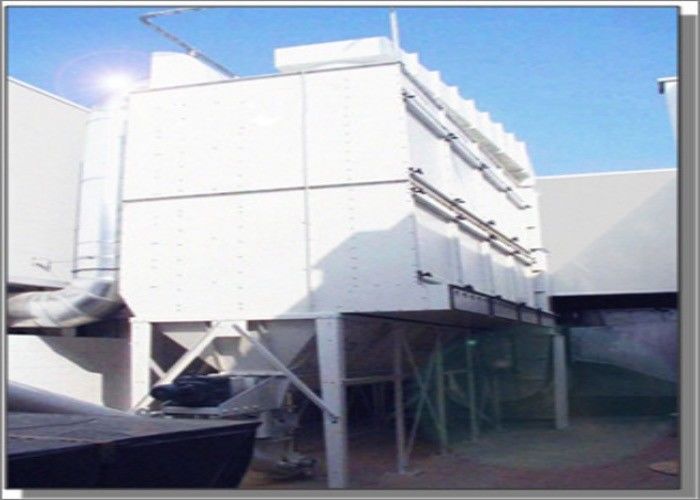

double filtration efficiency less pressure drop dust collectors
Hanrui Puzer is professional as one of the leading cartridge filter dust collector manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy cartridge filter dust collector at best price with us. We will offer you the greatest after-sales service and fast delivery.
Dust collector is designated to separate superfine particle or even sub-micron dust from process gas with micropore fiber material. It is widely applied to chemical industries, food, medicine , electric power,metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use. A dust collector is a system used to enhance the quality of air released from industrial and commercial processes by collecting dust and other impurities from air or gas.
We are a prominent manufacturer of a wide range of Dust Extraction and Dust Collector System for every segment of the industry in Shanghai China.
The offered range of these Dust Extraction System can be availed from us at comprehensive prices.
Product features:
1. Filter material with tectorial membrane, electric conduction polyester dipping treatment
2. Be able to make surface smooth if needed
3. Resistance to acid and alkali, resistance to moisture, non-bond on filter surface
4. Effectual filter area increase 2-3 times than general. Less pressure drop
5. Increased air flow, lower emissions, double filtration efficiency
6. Monolithic construction design, easy installation, examination and repair
7. Low injection gas press to save operating cost
8. Compacted structure to reduce the filter collector coving area and realize superfine dust filtration
| Model Parameters | HFD-32 | HFD-48 | HFD-64 | HFD-80 | HFD-96 | HFD-112 |
| Air Volume(m3·h) | 1500-2100 | 2100-3200 | 2900-4300 | 4000-6000 | 5200-7000 | 6000-9000 |
| Filter Area(m2) | 24 | 36 | 48 | 60 | 72 | 84 |
| Filter Wind Speed(m/min) | 1.0—1.5 | 1.0—1.5 | 1.0—1.5 | 1.1—1.7 | 1.2—1.7 | 1.2—1.8 |
| Material | can be selected | can be selected | can be selected | can be selected | can be selected | can be selected |
| Entrance Gas Temperature(℃) | ≤120 | |||||
| Equipment Resistance(Pa) | ≤1200 | |||||
| Soot Cleaning With Air Pressure(MPa) | 0.4~0.6 | |||||
| No.of Pulse Valve | 4 | 6 | 8 | 10 | 12 | 14 |
| Blower Motor Power(KW) | 1.5 | 3 | 3 | 5.5 | 5.5 | 7.5 |
