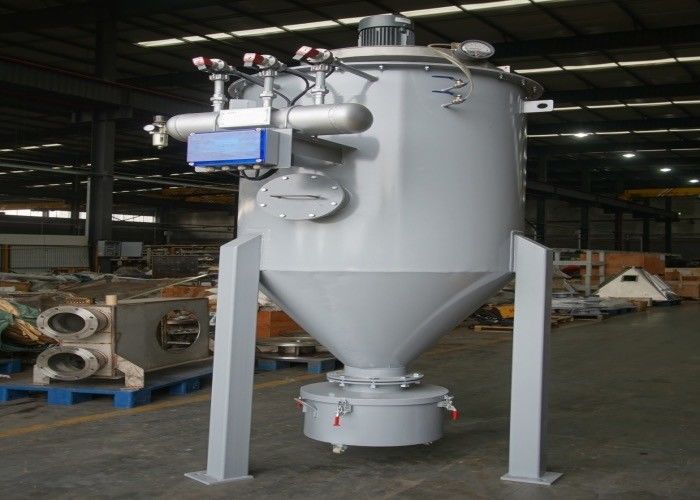

Alkali Resistant Energy Saving 0.4MPa Jet Pulse Dust Collector

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HFT15AP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/year

Detail Information

De-dust Efficiency: 99.999% Service Life: More Than 10 Years
Filter Material: Washable Sinterplate Material Material: SS304, SS316, SS316L , Q235
Pollution: No Risk Of Pollution Working Temperature: Less Than 204℃
Optional Accessories: Impulse Controller/sight Glass Etc. Other Advantage: Resistance To Moisture And Oil
High Light:

1.5kW dust collection equipment

,

SS316 Jet Pulse Dust Collector

,

0.4MPa Jet Pulse Dust Collector

Product Description

acid and alkali resistance energy saving jet pulse dust collector



Product details

Bag filter is widely used to cement, power plant, casting plant, electric power, metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use.

Sinterplate dust collector is a kind of high efficiency collector which use sinterplate as filter elements. The sinterplate will not out of shape due to its rigid structure , it has very long service life as there is no framework wear and tear, the service life is over 10 times than the bag filter in some working conditions.



Product advantages

1. High filter efficiency of bag dust collector

2. Integrated construction design and easy installation.

3. Bag collector has compacted structure to reduce ctor the filter collector covering area and realize superfine dust filtration.

4. The bags are resistant to acid and alkali, to moisture, non-bond on filter surface.

5. Impulse back cleaning, mechanical shake cleaning and acoustic wave cleaning can be used in dust collector. The impulse back cleaning filter components: impulse controller, solenoid valve, nozzle, differential pressure meter, safeguard and sight glass etc.

6. Effectual filter area increase 2-3 times than general. Less pressure drop

7. Increased air flow, lower emissions, double filtration efficiency

8. Monolithic construction design, easy installation, examination and repair

9. Low injection gas press to save operating cost



Model Parameters HFD-32 HFD-48 HFD-64 HFD-80 HFD-96 HFD-112
Air Volume(m3·h) 1500-2100 2100-3200 2900-4300 4000-6000 5200-7000 6000-9000
Filter Area(m2) 24 36 48 60 72 84
Filter Wind Speed(m/min) 1.0—1.5 1.0—1.5 1.0—1.5 1.1—1.7 1.2—1.7 1.2—1.8
Material can be selected can be selected can be selected can be selected can be selected can be selected
Entrance Gas Temperature(℃) ≤120
Equipment Resistance(Pa) ≤1200
Soot Cleaning With Air Pressure(MPa) 0.4~0.6
No.of Pulse Valve 4 6 8 10 12 14
Blower Motor Power(KW) 1.5 3 3 5.5 5.5 7.5



Shipping

  1. We ship out your order by sea or air according to customer‘s request
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways.
