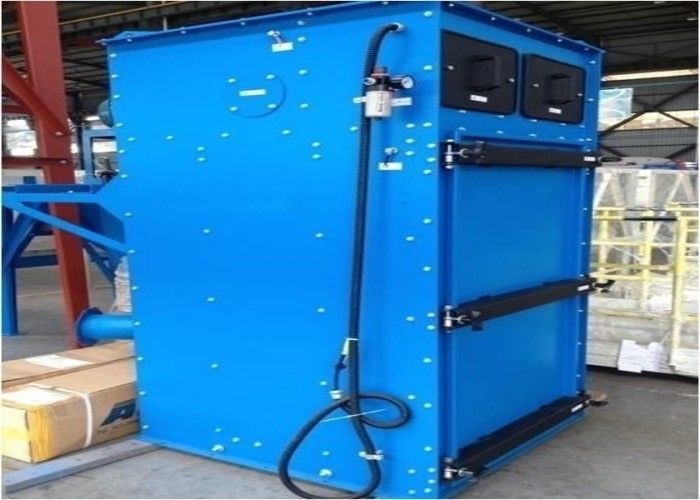

Blue Integrated Construction 36m2 Industrial Dust Collector

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HFT15AP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/year

Detail Information

Filter Efficiency: 99.999% Working Temperature: Less Than 204 ℃
Flaw Resistance: 25kg/m³ Other Advantages: Resistance Acid& Alkali
Material: SS304, SS316, SS316L , Q235 Filter Shape: Round/square
Location: Indoor/outdoor Working Voltage: 220V/380V/690V Etc
Shipping Method: By Shipping/by Sea Etc.
High Light:

0.6Mpa dust collection equipment

,

SS316L Industrial Dust Collector

,

36m2 Industrial Dust Collector

Product Description

New type of filter element bag filer applicable for chemical industry



Product description

Dust collector is designated to separate superfine particle or even sub-micron dust from process gas with micropore fiber material. It is widely applied to chemical industries, food, medicine , electric power,metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use. A dust collector is a system used to enhance the quality of air released from industrial and commercial processes by collecting dust and other impurities from air or gas.

We are a prominent manufacturer of a wide range of Dust Extraction and Dust Collector System for every segment of the industry in Shanghai China.

The offered range of these Dust Extraction System can be availed from us at comprehensive prices.



Product advantages

1. High filter efficiency of bag dust collector

2. Integrated construction design and easy installation.

3. Bag collector has compacted structure to reduce the filter collector covering area and realize superfine dust filtration.

4. The bags are resistant to acid and alkali, to moisture, non-bond on filter surface.

5. Impulse back cleaning, mechanical shake cleaning and acoustic wave cleaning can be used in dust collector. The impulse back cleaning filter components: impulse controller, solenoid valve, nozzle, differential pressure meter, safeguard and sight glass etc.



Model Parameters HFD-32 HFD-48 HFD-64 HFD-80 HFD-96 HFD-112
Air Volume(m3·h) 1500-2100 2100-3200 2900-4300 4000-6000 5200-7000 6000-9000
Filter Area(m2) 24 36 48 60 72 84
Filter Wind Speed(m/min) 1.0—1.5 1.0—1.5 1.0—1.5 1.1—1.7 1.2—1.7 1.2—1.8
Material can be selected can be selected can be selected can be selected can be selected can be selected
Entrance Gas Temperature(℃) ≤120
Equipment Resistance(Pa) ≤1200
Soot Cleaning With Air Pressure(MPa) 0.4~0.6
No.of Pulse Valve 4 6 8 10 12 14
Blower Motor Power(KW) 1.5 3 3 5.5 5.5 7.5



FRQ questions:

1. Can we choose the material of the filter ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need.



Blue Integrated Construction 36m2 Industrial Dust Collector 0
