Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hanrui |
| Certification: | CE |
| Model Number: | HFT15AP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/year |
|
Detail Information |
|||
| Filter Efficiency: | 99.99%/99.999% | Working Temperature: | Less Than 204 ℃ |
|---|---|---|---|
| Flaw Resistance: | 25kg/m³ | Filter Material: | Resistance Acid& Alkali |
| Material: | SS304, SS316, SS316L , Q235 | Stretch Resistance: | 90KG(X), 120KG(Y) |
| Area Covers: | Less Area Covering | Optional Accessories: | Solenoid Valve/safeguard Device Etc. |
| High Light: | 25kg/m³ reverse pulse dust collector,90kg reverse pulse jet dust collector,Offline reverse pulse jet dust collector |
||
Product Description

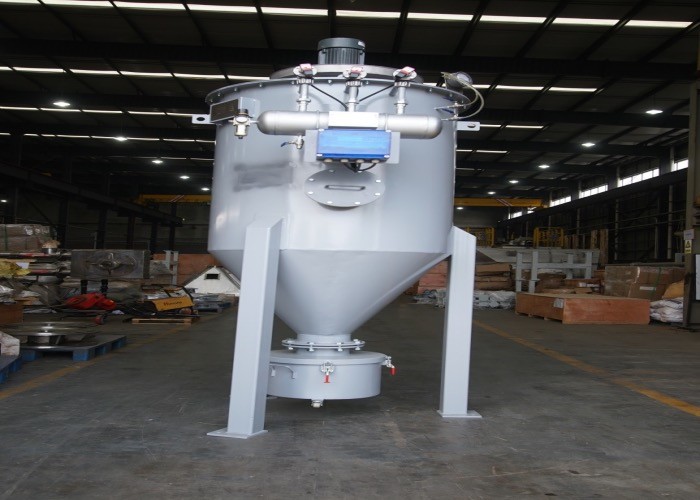

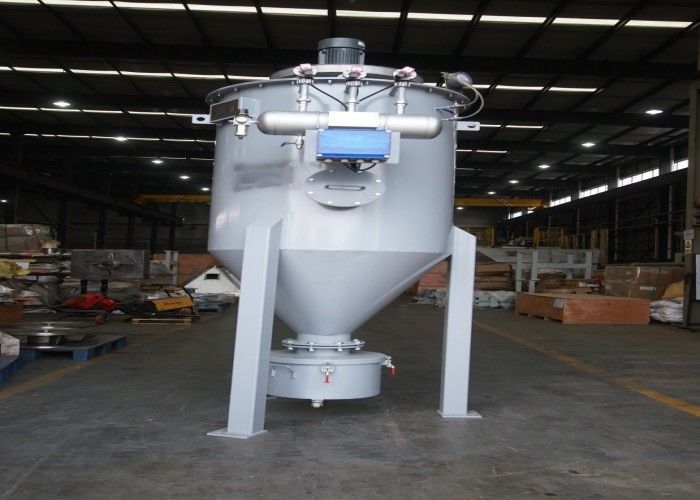

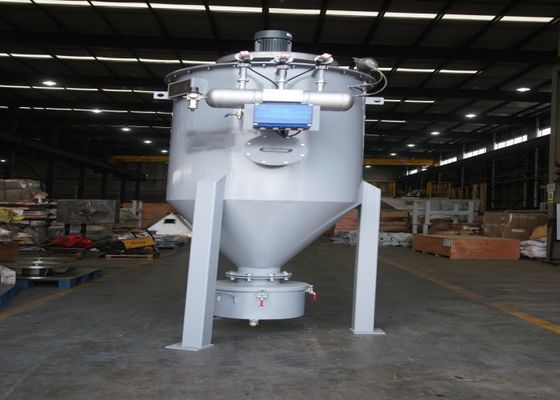

Offline reverse pulse jet dust filter for a wide of using range
Product details
Working temperature of bag filter dust collector: Common filter material:130?, High temperature filter material:240?
Filter efficiency: 99.99% second high-efficiency filters can be used according to special requirements.
Cage frame material: SS304, SS304L, SS316, SS316L, WCB and etc.
Product advantages
1. Effectual filter area increase 2-3 times than general. Less pressure drop
2. Increased air flow, lower emissions, double filtration efficiency
3. Monolithic construction design, easy installation, examination and repair
4. Low injection gas press to save operating cost
5. Compacted structure to reduce the filter collector coving area and realize superfine dust filtration
6. The bags are resistant to acid and alkali, to moisture, non-bond on filter surface.
7. Impulse back cleaning, mechanical shake cleaning and acoustic wave cleaning can be used in dust collector. The impulse back cleaning filter components: impulse controller, solenoid valve, nozzle, differential pressure meter, safeguard and sight glass etc.
Product advantages
Technical parameters:
| Model Parameters | HFD-32 | HFD-48 | HFD-64 | HFD-80 | HFD-96 | HFD-112 |
| Air Volume(m3·h) | 1500-2100 | 2100-3200 | 2900-4300 | 4000-6000 | 5200-7000 | 6000-9000 |
| Filter Area(m2) | 24 | 36 | 48 | 60 | 72 | 84 |
| Filter Wind Speed(m/min) | 1.0—1.5 | 1.0—1.5 | 1.0—1.5 | 1.1—1.7 | 1.2—1.7 | 1.2—1.8 |
| Material | can be selected | can be selected | can be selected | can be selected | can be selected | can be selected |
| Entrance Gas Temperature(℃) | ≤120 | |||||
| Equipment Resistance(Pa) | ≤1200 | |||||
| Soot Cleaning With Air Pressure(MPa) | 0.4~0.6 | |||||
| No.of Pulse Valve | 4 | 6 | 8 | 10 | 12 | 14 |
| Blower Motor Power(KW) | 1.5 | 3 | 3 | 5.5 | 5.5 | 7.5 |
Dust collector is designated to separate superfine particle or even sub-micron dust from process gas with micropore fiber material. It is widely applied to chemical industries, food, medicine , electric power,metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use. A dust collector is a system used to enhance the quality of air released from industrial and commercial processes by collecting dust and other impurities from air or gas.
Hanrui Puzer is professional as one of the leading bag filter dust collector manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy bag filter dust collector at best price with us. We will offer you the greatest after-sales service and fast delivery.
Necessary information when order:
1. Location: indoor or outdoor
2. Kindly provide the installment position and the conveying distance
3. Capacity(KG/H), and remark the ration conveying or variable conveying
4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics
5. Flange standard and flange dimension
6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
