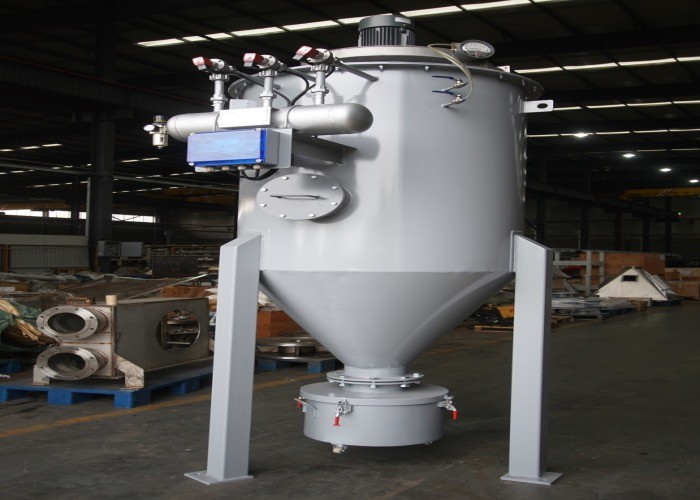

No Silicon Cartridge Filter 1500m3/H Industrial Dust Collector

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HFT15AP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/year

Detail Information

Filter Efficiency: Less Than 1mg/m³ Service Life: More Than 10 Years
Advantages: Washable, Renew,no Silicon Selected Material: SS304, SS316, SS316L , Q235
Pollution: No Risk Of Pollution Main Type: Cartridge /bag/sinterplate
Selected Type: Round/square Shape Package Type: Stretch Film/plywood Etc.
High Light:

2100m3/H dust collection equipment

,

24m2 Industrial Dust Collector

,

1500m3/H Industrial Dust Collector

Product Description

Cartridge filter with high effectual filter area for industrial dedusting



Product details



A dust collector is a system used to enhance the quality of air released from industrial and commercial processes by collecting dust and other impurities from air or gas.

We are a prominent manufacturer of a wide range of Dust Extraction and Dust Collector System for every segment of the industry in Shanghai China.

The offered range of these Dust Extraction System can be availed from us at comprehensive prices.

Dust collector is designed to seperate superfine particle or even sub-micron dust from process gas with micropore fiber material. It is widely applied to chemical industries, food,medicine, electric power, metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use. It can be also divided into bag filter and cartridge filter according to structure.Filter material is made of fiber, common felt, felt with Tex, polyester, Nomex, polymer cloth, Teflon, terylene, Plypropylene...



Model Parameters HFD-32 HFD-48 HFD-64 HFD-80 HFD-96 HFD-112
Air Volume(m3·h) 1500-2100 2100-3200 2900-4300 4000-6000 5200-7000 6000-9000
Filter Area(m2) 24 36 48 60 72 84
Filter Wind Speed(m/min) 1.0—1.5 1.0—1.5 1.0—1.5 1.1—1.7 1.2—1.7 1.2—1.8
Material can be selected can be selected can be selected can be selected can be selected can be selected
Entrance Gas Temperature(℃) ≤120
Equipment Resistance(Pa) ≤1200
Soot Cleaning With Air Pressure(MPa) 0.4~0.6
No.of Pulse Valve 4 6 8 10 12 14
Blower Motor Power(KW) 1.5 3 3 5.5 5.5 7.5

Product advantages

1. Effectual filter area increase 2-3 times than general. Less pressure drop

2. Increased air flow, lower emissions, double filtration efficiency

3. Monolithic construction design, easy installation, examination and repair

4. Low injection gas press to save operating cost

5. Compacted structure to reduce the filter collector coving area and realize superfine dust filtration

No Silicon Cartridge Filter 1500m3/H Industrial Dust Collector 0



Hanrui Puzer is professional as one of the leading bag filter dust collector manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy bag filter dust collector at best price with us. We will offer you the greatest after-sales service and fast delivery. We can follow request of consumer to complete modification works. Increase process capacity and retain originally space. Offer optimum design, equipment and intelligence detecting and control system.

Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
