Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hanrui |
| Certification: | CE |
| Model Number: | HFT15AC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/year |
|
Detail Information |
|||
| Pressure Drop: | Low Pressure Drop | Working Temperature: | Less Than 204 ℃ |
|---|---|---|---|
| Flaw Resistance: | 25kg/m³ | Packaging Type: | Stretch Film /plywood Etc. |
| Material: | SS304, SS316, SS316L , Q235 | Certification: | CE/ISO9001 |
| Cleaning Air: | Pressure 0.4-0.6Mpa | Stretching Resistance: | 90KG |
| High Light: | 0.6Mpa industrial dust control systems,90KG Industrial Dust Collection System,Q235 Industrial Dust Collection System |
||
Product Description

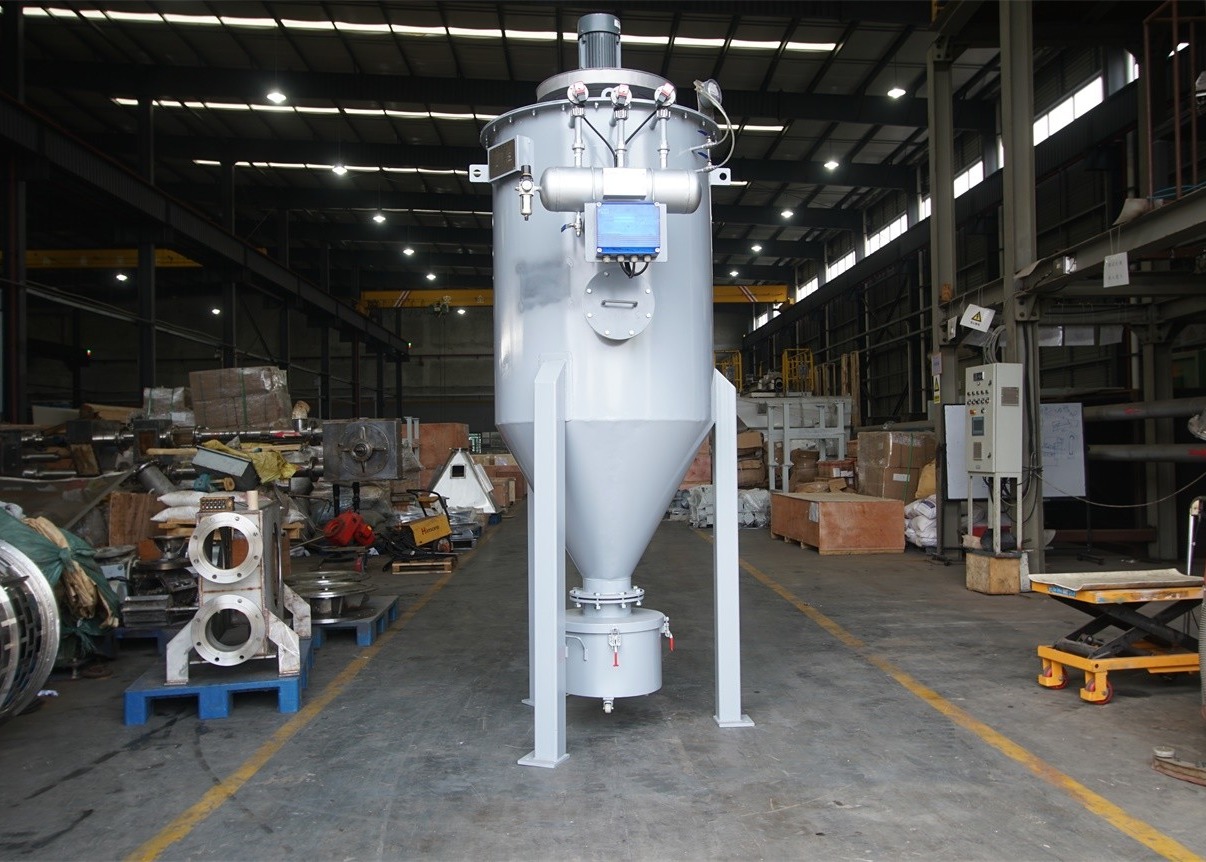

Q235 material dust control, dust collection system for chemical industry
Bag filter is widely used to chemical industries, food, medicine, electric power, metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use.
Product details
Working temperature of bag filter dust collector: Common filter material:130℃, High temperature filter material:240℃
Filter efficiency: 99.99% second high-efficiency filters can be used according to special requirements.
Cage frame material: SS304, SS304L, SS316, SS316L, WCB and etc.
| Model Parameters | HFD-32 | HFD-48 | HFD-64 | HFD-80 | HFD-96 | HFD-112 |
| Air Volume(m3·h) | 1500-2100 | 2100-3200 | 2900-4300 | 4000-6000 | 5200-7000 | 6000-9000 |
| Filter Area(m2) | 24 | 36 | 48 | 60 | 72 | 84 |
| Filter Wind Speed(m/min) | 1.0—1.5 | 1.0—1.5 | 1.0—1.5 | 1.1—1.7 | 1.2—1.7 | 1.2—1.8 |
| Material | can be selected | can be selected | can be selected | can be selected | can be selected | can be selected |
| Entrance Gas Temperature(℃) | ≤120 | |||||
| Equipment Resistance(Pa) | ≤1200 | |||||
| Soot Cleaning With Air Pressure(MPa) | 0.4~0.6 | |||||
| No.of Pulse Valve | 4 | 6 | 8 | 10 | 12 | 14 |
| Blower Motor Power(KW) | 1.5 | 3 | 3 | 5.5 | 5.5 | 7.5 |
Product features:
1. Filter material with tectorial membrane, electric conduction polyester dipping treatment
2. Be able to make surface smooth if needed
3. Resistance to acid and alkali, resistance to moisture, non-bond on filter surface
4. We can follow request of consumer to complete modification works. Increase process capacity and retain originally space. Offer optimum design, equipment and intelligence detecting and control system.
FRQ questions:
1. Can we choose the material of the bag filter?
Yes, for material, you can choose SS304, SS316, SS316L , Q235 or other .
2. What should we supply you when we need to select a proper size?
You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well, such as material name , bulk density, particle size, material flow ability etc.
3. What is other information we need to supply before get a quotation?
We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .
4. Can we choose the brand of the motor?
Yes , you can select motor brand according to your own requirement.
